CONTACTOR 3P 37kW 80A AC-3 380/400V COIL 220VAC 1NO+1NC
CONTACTOR 3P 37kW 80A AC-3 380/400V COIL 220VAC 1NO+1NC

CONTACTOR 3P 37kW 80A AC-3 380/400V COIL 220VAC 1NO+1NC

Pilih Arus pengenal
Pilih Kontak bantu
Kode Produk LC1E80M7
Nama Produk CONTACTOR 3P 37kW 80A AC-3 380/400V COIL 220VAC 1NO+1NC
Keterangan TVS SCHNEIDER ELECTRIC - LC1E80M7
Brand Schneider Electric
Arus Pengenal 80A
Kontak Bantu 1NO+1NC
Tegangan Coil 220VAC
Tipe EasyPact TVS
Ketersediaan Stok
Kode Produk : LC1E80M7 Brand : Schneider Electric Nama Produk : CONTACTOR 3P 37kW 80A AC-3 380/400V COIL 220VAC 1NO+1NC Keterangan : TVS SCHNEIDER ELECTRIC - LC1E80M7

Easy TeSys Control contactor 3 poles for motor applications up to 80A 45kW@440V. It provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Specification
Type of electrical connection of main circuit Screw connection
Width 85 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Rated operation power at AC-3, 400 V 37 Kilowatt
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 1
Modular version FALSE
Operating voltage AC 50 Hz 690 Volt
Depth 121 Millimetre
Operating voltage AC 60 Hz 690 Volt
Rated operation current Ie at AC-1, 400 V 110 Ampere
Voltage type for actuating AC
Height 127 Millimetre
Rated operation current Ie at AC-3, 400 V 80 Ampere
Documents

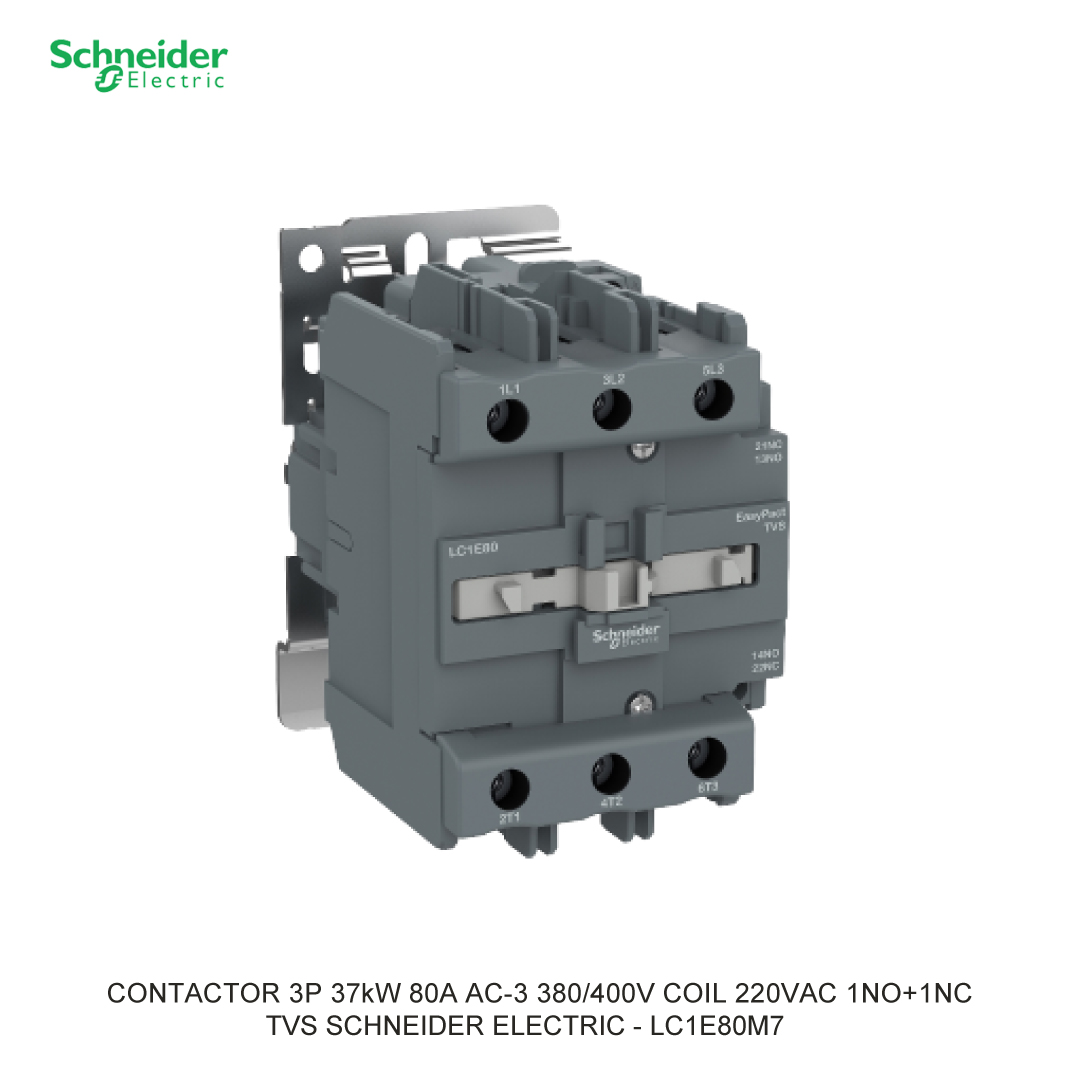

Image of product
Image of product

Stock Tersedia

Rp.1.611.720,-

45% Rp.2.930.400,-

Add to Cart
