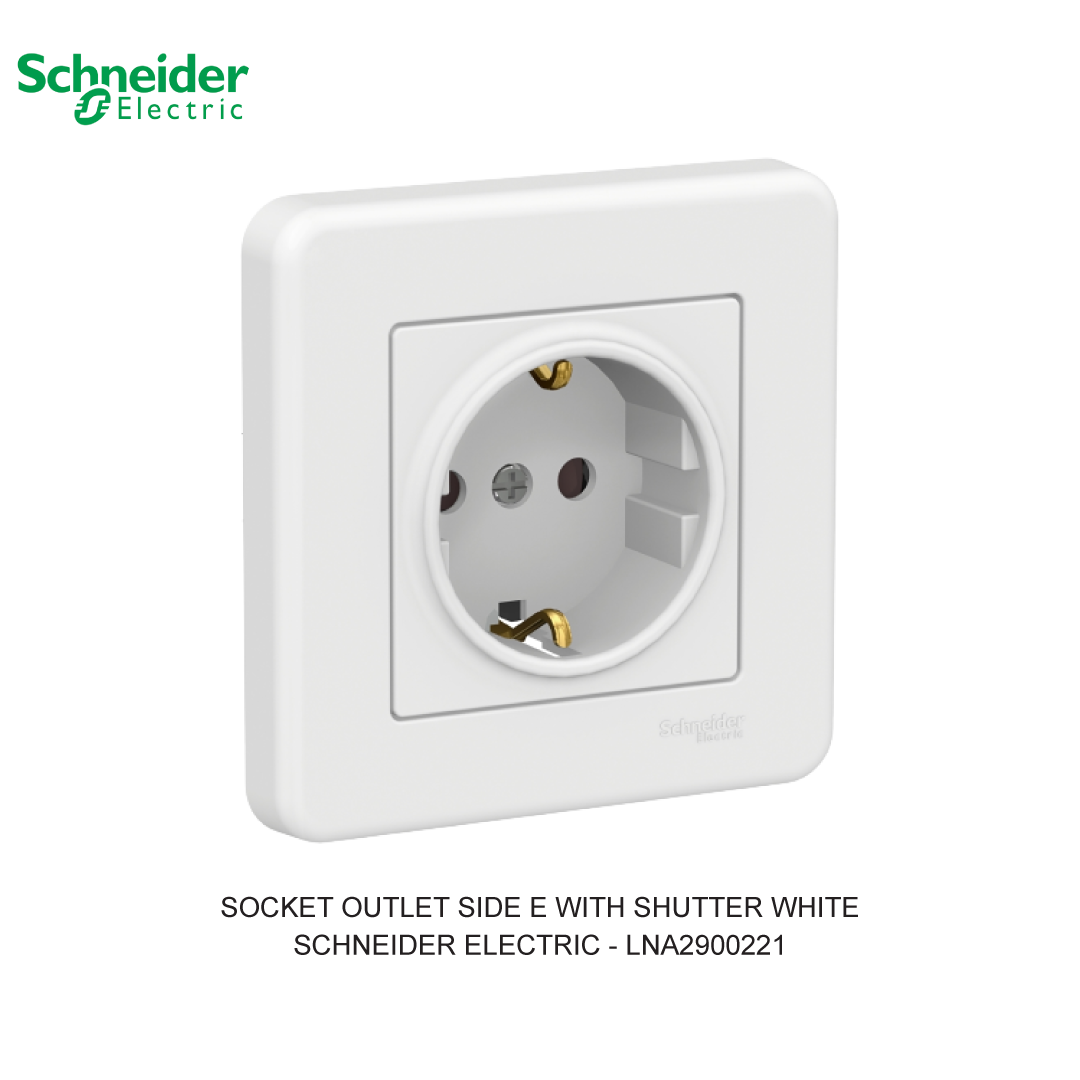

SOCKET OUTLET SIDE E WITH SHUTTER WHITE

Pilih Tipe
Pilih Model
Kode Produk LNA2900221
Nama Produk SOCKET OUTLET SIDE E WITH SHUTTER WHITE
Keterangan KOTAK KONTAK LEONA SCHNEIDER ELECTRIC/CLIPSAL - LNA2900221
Brand Schneider Electric
Tipe 1 Stop Kontak
Tipe 2 Leona
Warna White
Ketersediaan Stok

Download the LNA2900221 SOCKET OUTLET SIDE E WITH SHUTTER WHITE SCHNEIDER ELECTRIC product datasheet, by clicking  here!

Function of the Switch Leona  :

  • Product Code : LNA2900221
  • Brand : Schneider Electric
  • Product Name :SOCKET OUTLET SIDE E WITH SHUTTER WHITE
  • Description : KOTAK KONTAK LEONA SCHNEIDER ELECTRIC/CLIPSAL - LNA2900221
  • Range: Leona
  • Product or component type: Socket-outlet
  • Outlet standard description: Side earth
  • Device presentation: Complete product
  • Socket additional information: Shuttered
  • Colour tint: White
  • Type of packing: Flow-pack
  • Device mounting: Flush
  • Rated current: 16 A at 250 V AC
  • Number of cables: 3 cable(s) 2.5 mm²
  • Wire stripping length: 12.5 mm
  • Material:
    ABS (acrylonitrile butadiene-styrene): cover frame

    PC/ABS: central plate
  • Surface finish: Glossy
  • Conductor material: Copper
  • Fixing mode: Claws5…29 mm
  • Height: 82 mm
  • Width: 82 mm
  • Depth: 42.2 mm
  • Projecting depth: 12.7 mm
  • Net weight: 0.089 kg
  • Warranty : 18 months

Schneider Electric - SWITCH Leona

Modern Leona design available in two colors, white and cream Innovative assembly system frames are availbale  from 1-gang up to 4-gang can be installed horizontally or vertically shiny and yet robust material brought range of functions like dimmers, push-buttons for shutter control, socket-outlets with lid and many more Simple installation screw or claw mounting safe wiring strong and long-lasting fixation

You can shop safely at ListrikKita.com because all the items we sell are guaranteed 100% original, officially guaranteed, and can be accompanied by a letter of authenticity of the goods. For more information or to make a large purchase, please contact our sales or marketing team by clicking here. Happy shopping!

Specification
With hinged lid FALSE
Number of phases 1
With signal lamp FALSE
Lockable FALSE
Imprint/indication None
Eject-mechanism FALSE
With Wi-Fi signal repeater FALSE
Metallic colour FALSE
Colour White
Device width 82 Millimetre
Device height 82 Millimetre
Rotated central insert FALSE
Nominal current 16 Ampere
Fault current protection FALSE
Nominal voltage 250 Volt
Over voltage protection FALSE
Connection type Other
Mounting method Flush-mounted
With on/off switch FALSE
Material quality Thermoplastic
Special power supply No special power supply
Compatible with Apple HomeKit FALSE
Compatible with Google Assistant FALSE
Compatible with Amazon Alexa FALSE
Anti-bacterial treatment FALSE
Protective contact Earthing clips
Surface protection Untreated
Frequency 50…60 Hertz
Model Socket outlet CEE 7/3 (type F)
Suitable for degree of protection (IP) IP20
RAL-number (similar) 9003
IFTTT support available FALSE
Device depth 42.2 Millimetre
Insulated mounting FALSE
With function lighting FALSE
With built-in bluetooth speaker FALSE
With orientation lighting FALSE
Min. depth of built-in installation box 40 Millimetre
Transparent FALSE
Type of fastening Mounting with claw and screw
Surface finishing Glossy
Material Plastic
Label space/information surface FALSE
Halogen free TRUE
With enhanced contact protection TRUE
With loop through function FALSE
With miniature fuse FALSE
Compliant with UK Building Regulations Part M FALSE
Number of units 1
For heavy conditions according to VDE FALSE
Number of active contacts (round) 2
