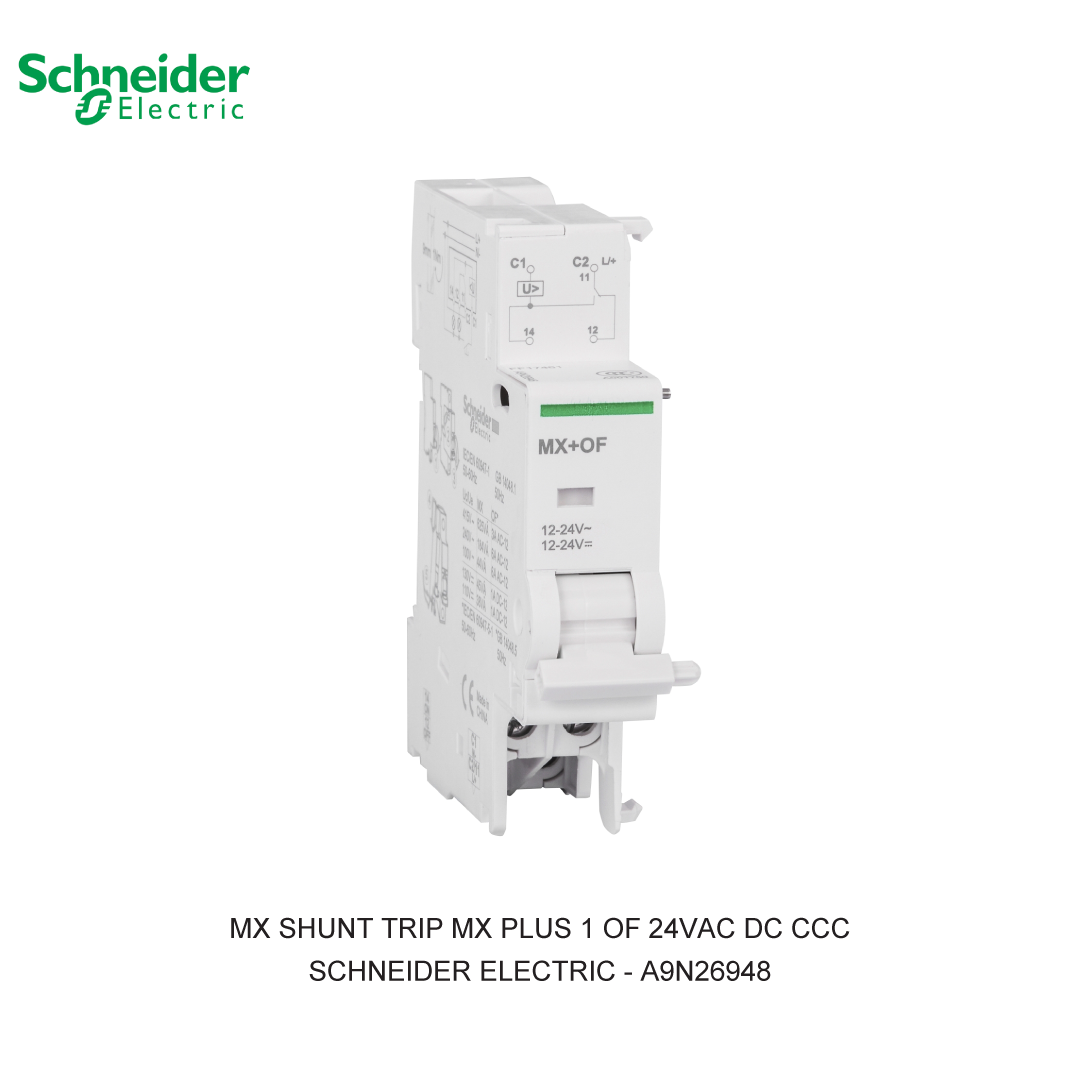

MX SHUNT TRIP MX PLUS 1 OF 24VAC DC CCC

Download the  A9N26948 MX SHUNT TRIP MX PLUS 1 OF 24VAC DC CCC SCHNEIDER ELECTRIC product datasheet, by clicking  here!

Fungsi Pemutus Sirkuit Miniatur (MCB):

• Kode Produk: A9N26948
• Merek: Schneider Electric
• Nama Produk: MX SHUNT TRIP MX PLUS 1 OF 24VAC DC CCC
• Deskripsi: ACCESSORIES MCB C120, DPN, C60, SW60-DC SCHNEIDER ELECTRIC - A9N26948
• Rentang: Acti9
• Jenis produk atau komponen: Pelepasan trip shunt dengan kontak OC
• Nama singkat perangkat: MX + OF
• Komposisi kontak sinyal: 1 C/O
• Mode pemasangan: Tetap
• Penyangga pemasangan: 35 mm symmetrical Rel DIN
• Kompatibilitas busbar sisir dan blok distribusi Atas atau bawah: YA
• 9 mm Jumlah pitch: 2
• Tinggi: 85,3 mm
• Lebar: 18 mm
• Kedalaman: 73,5 mm
• Berat bersih: 65 g
• Warna: Putih
• Garansi: 18 bulan

Acti9 MX Shunt Trip MX for MCBs & RCDs Schneider Electric

Dirancang dengan perlindungan dan beragam fitur, sistem manajemen tripping Acti9 dan tripping rel DIN menggabungkan kemudahan instalasi dengan fungsionalitas tinggi. Termasuk: pemulihan otomatis, kendali jarak jauh, indikasi jarak jauh, dan tripping. VisiTrip untuk deteksi cepat isolator yang rusak dan waktu intervensi yang lebih singkat. Sistem rakitan clip-on untuk kemudahan penggunaan. Sistem ini digunakan untuk meningkatkan perlindungan di gedung komersial dan industri, sekaligus mengatasi sirkuit tripping yang disebabkan oleh: hubung singkat, arus lebih, arus bocor arde, penurunan tegangan, dan tripping pengaman manual.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi dan dapat disertai dengan surat keaslian barang. Untuk dapatkan harga MCB terbaik dan informasi lebih lanjut bisa menghubungi tim sales atau marketing kami silakan klik disini. Selamat berbelanja.

This Acti9 MX+OF shunt trip release is an electric tripping auxiliary with open/close auxiliary contact. It is dedicated to C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA. This device includes an open/close contact OF to indicate the position of the circuit breaker. Emergency stoppage by normally open pushbutton. It provides a remote indication of the position of the associated device. The product trips the associated device when it is powered on. The width in 9mm pitches is 2. There is a mechanical state indicator light, red on the front face. The Ue rated operational voltage is 24 to 24VDC or 12 to 24VAC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Specification

Rated voltage	24 Volt
Voltage type	AC/DC
With auto test for earth leakage function	FALSE
Device fitting	Miniature circuit breaker (MCB)
Width in number of modular spacings	1
Suitable for max. number of poles main contact unit (total)	4
Number of fault-signal switches	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1
Suitable for max. current main contact unit	125 Ampere
Function	Shunt release (for power circuit breaker)
Number of contacts as normally closed contact	0

Documents

• Declaration of conformity - EU_declaration_MX_OF
• Circularity Profile - Acti9 - Auxiliary Contact - iOF 1OC 100mA-6A - Product End of Life Instructions
• Environmental Disclosure - Acti9 - Auxiliary contact iOF - 100mA to 6A -24VAC to 415VAC - Product Environmental Profile
