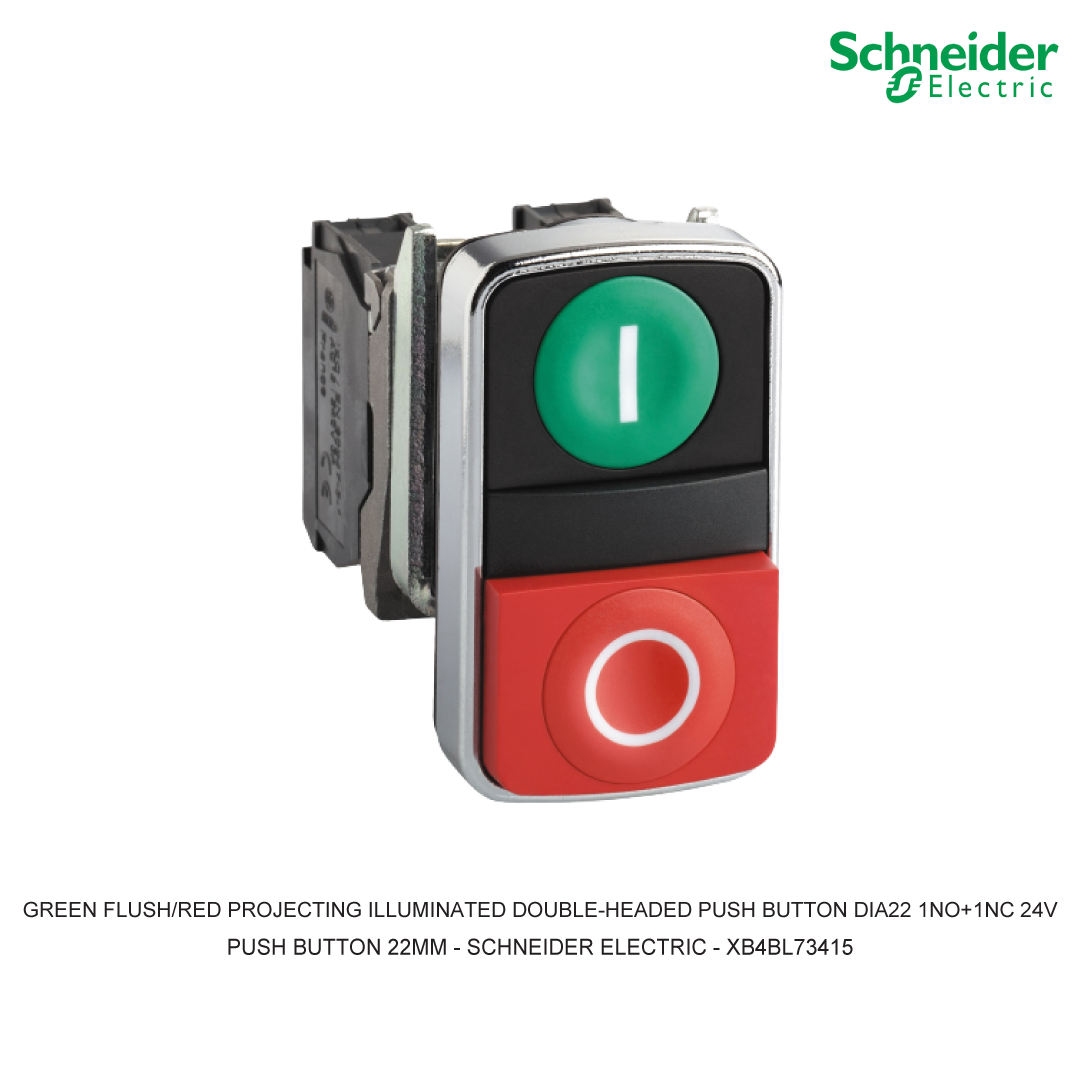

GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 24V

Name: GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 24V
Brand: SCHNEIDER ELECTRIC
Price: 208180.50 IDR
Availability: InStock

Kode Produk

XB4BL73415

Nama Produk

Keterangan

XB4 (MODULAR TYPE METAL) SCHNEIDER ELECTRIC - XB4BL73415

Brand

Schneider Electric

Tipe

Push Button 22mm

Warna (Cap/Operator or Lens Colour)

Hijau/Merah

Kontak (Contacts Type and Composition)

1NO+1NC

Ketersediaan Stok

${item.title}
Stok Tersedia

Stok Tidak Tersedia
Tersedia di ${resources.length} lokasi Cabang - Lihat Semua
Tidak ada data cabang

Untuk unduh datasheet produk XB4BL73415 green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 24V, silahkan klik di sini!

Karakteristik Teknikal:

Kode Produk : XB4BL73415
Brand : Schneider Electric
Nama Produk : GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 24V
Keterangan : XB4 (MODULAR TYPE METAL) SCHNEIDER ELECTRIC - XB4BL73415
Rentang produk : Harmony XB4
Tipe produk atau komponen : Double-headed push-button
Material bezel : Logam berlapis kromium
Material collar pemasangan : Zamak
Tipe kepala : Standard
Diameter pemasangan : 22,5 mm
Bentuk kepala unit persinyalan : Persegi panjang
Tipe operator : Spring return
Profil operator : 1 flush - 1 projecting push-buttons
Deskripsi operator : Hijau "I" - merah "O"
Tipe dan komposisi kontak : 1 NO + 1 NC
Berat bersih Double-headed Push Button XB4BL73415 Schneider Electric : 0.116 kg

Double-headed Push Button Schneider Electric

Double-headed push button merupakan tombol tekan dengan kepala ganda. Tombol ini memiliki tipe kontak ganda (NO dan NC) yang akan terhubung secara bersamaan saat ditekan. Perangkat ini biasa juga dikenal sebagai saklar tombol tekan kembar, yang biasanya digunakan untuk mengontrol hidup dan matinya motor atau beban. Pencahayaan untuk double-headed push button ini biasanya terletak di tengah-tengah kedua tombol.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja!

This Harmony XB4 double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism. It has a metal bezel. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specification

Spring-return	TRUE
Colour front ring	Chrome
Type of electric connection	Screw connection
Material front ring	Metal
Hole diameter	22.5 Millimetre
Switching function latching	FALSE
Type of button	Flat
Construction type lens	Rectangular
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Colour button	Red/green
With front ring	TRUE
Suitable for illumination	FALSE
Degree of protection (IP)	IP67/IP69K
Transparent	FALSE
Number of command positions	2
Number of contacts as normally closed contact	1
Degree of protection (NEMA)	4X
