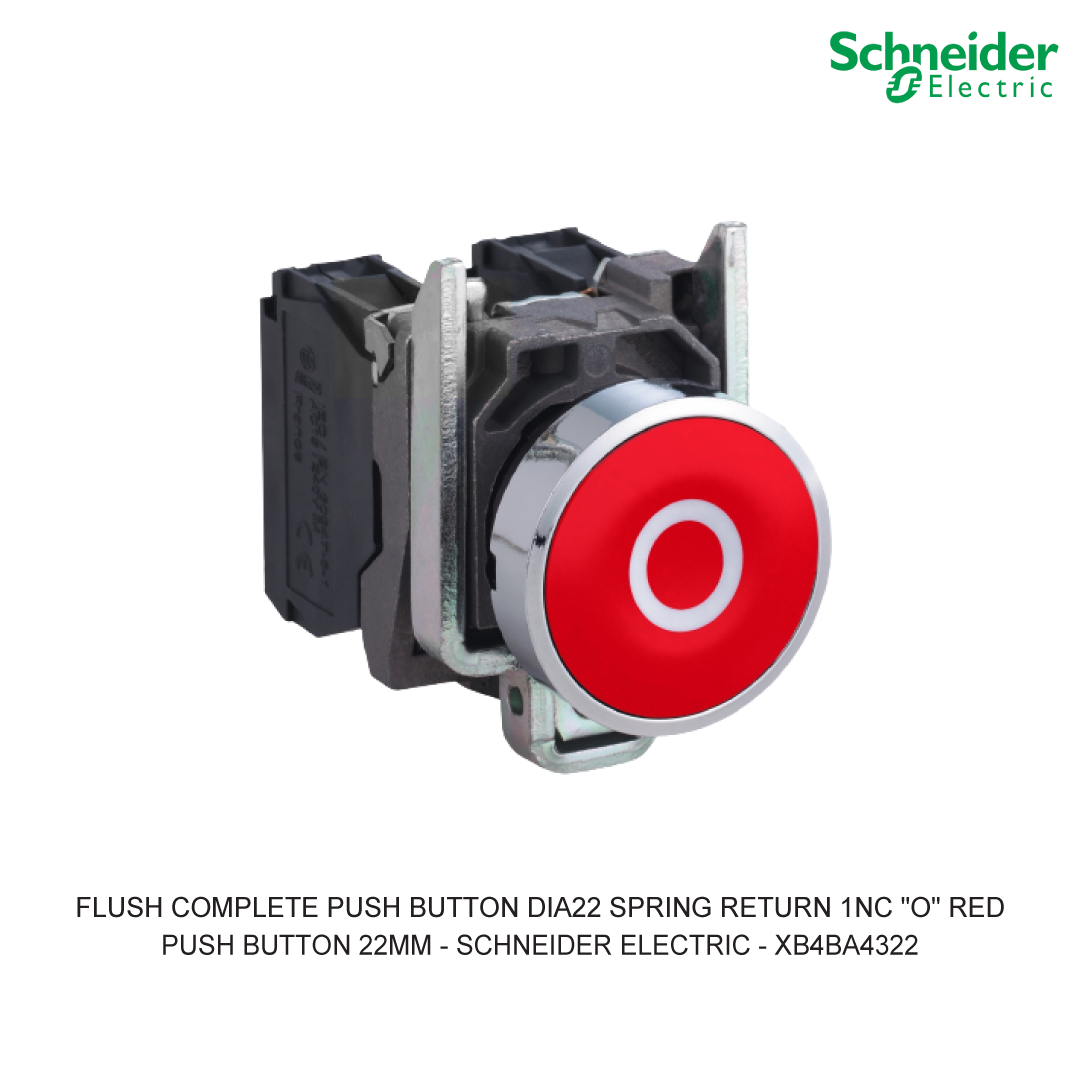

FLUSH COMPLETE PUSH BUTTON DIA22 SPRING RETURN 1NC "O" RED

Untuk unduh datasheet produk XB4BA4322 red flush complete pushbutton Ø22 spring return 1NC "O", silakan klik di sini!

Karakteristik Teknikal:

• Kode Produk : XB4BA4322
• Brand : Schneider Electric
• Nama Produk : FLUSH COMPLETE PUSH BUTTON DIA22 SPRING RETURN 1NC "O" RED
• Keterangan : XB4 (MODULAR TYPE METAL) SCHNEIDER ELECTRIC - XB4BA4322
• Rentang produk : Harmony XB4
• Jenis produk atau komponen : Push-button
• Material bezel : Logam berlapis kromium
• Material collar pemasangan : Zamak
• Diameter pemasangan : 22,5 mm
• Warna tutup/operator atau lensa : Merah
• Bentuk kepala unit persinyalan : Bulat
• Tipe operator : Spring return
• Profil operator : Warna merah, O (putih)
• Tipe kepala : Standard
• Tipe dan komposisi kontak : 1 NC
• Lebar : 47 mm
• Tinggi : 30 mm
• Kedalaman : 52 mm
• Berat bersih Push Button 22 mm XB4BA4322 Schneider Electric : 0.08 kg

Push Button Schneider Electric

Push Button adalah saklar tombol tekan yang berfungsi untuk menghubungkan atau memutuskan aliran listrik. Push button bekerja dengan cara tekan unlock, yaitu saat tombol ditekan maka saklar akan bekerja, dan saat tombol dilepas maka saklar akan kembali normal.  Push button sering digunakan dalam berbagai aplikasi, seperti: Memulai dan mengakhiri kerja mesin di industri, Tombol darurat atau sakelar pintu otomatis, Mengaktifkan alarm darurat, Sistem pengontrolan motor-motor induksi, Sistem permainan untuk interaksi pengguna.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja!

This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specification

Spring-return	TRUE
Colour front ring	Chrome
Type of electric connection	Screw connection
Material front ring	Metal
Hole diameter	22.5 Millimetre
Switching function latching	FALSE
Type of button	Flat
Number of contacts as normally open contact	0
Construction type lens	Round
Colour button	Red
Number of contacts as change-over contact	0
With front ring	TRUE
Degree of protection (IP)	IP66
Suitable for illumination	FALSE
Number of command positions	1
Transparent	FALSE
Number of contacts as normally closed contact	1
Degree of protection (NEMA)	4X

Documents

• Declaration of conformity - XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers
• Circularity Profile - Harmony XB4 Non Illuminated Push Button, End Of Life Instructions
• Environmental Disclosure - Harmony XB4 Non Illuminated Push Button, Product Environmental Profile
• Instruction sheet - XB4-XB5 - Mounting - Instruction Sheet
• Catalog - Discover the Harmony XB4 metal Control and signaling units catalog
