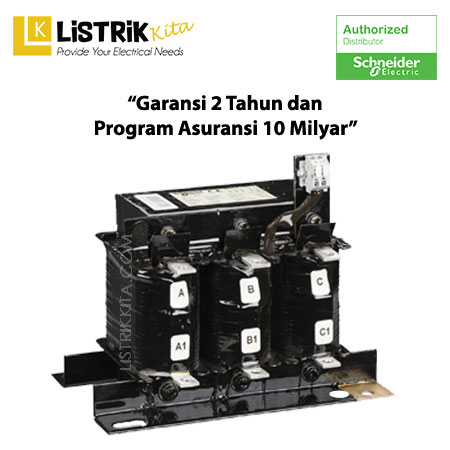

DETUNED REACTOR 12.5kVAR 400V 50HZ
| Pilih Daya reaktif |
|
||||||||||||||||
| Pilih Tegangan |
|
||||||||||||||||
| Kode Produk | LVR07125A40T | ||||||||||||||||
| Nama Produk | DETUNED REACTOR 12.5kVAR 400V 50HZ | ||||||||||||||||
| Keterangan | ANTI HARMONIC DETUNED REACTOR 190HZ (3.8) 7% - LVR07125A40T | ||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||
| Tipe | Detuned Reactor | ||||||||||||||||
| kVAR | 12.5kVAR | ||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||
|
ANTI HARMONIC DETUNED REACTOR 12.5KVAR 190HZ (3.8) 7% 50HZ 400V - LVR07125A40T
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 12.5 kVar output power with 3.8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 10 kg. Specification
