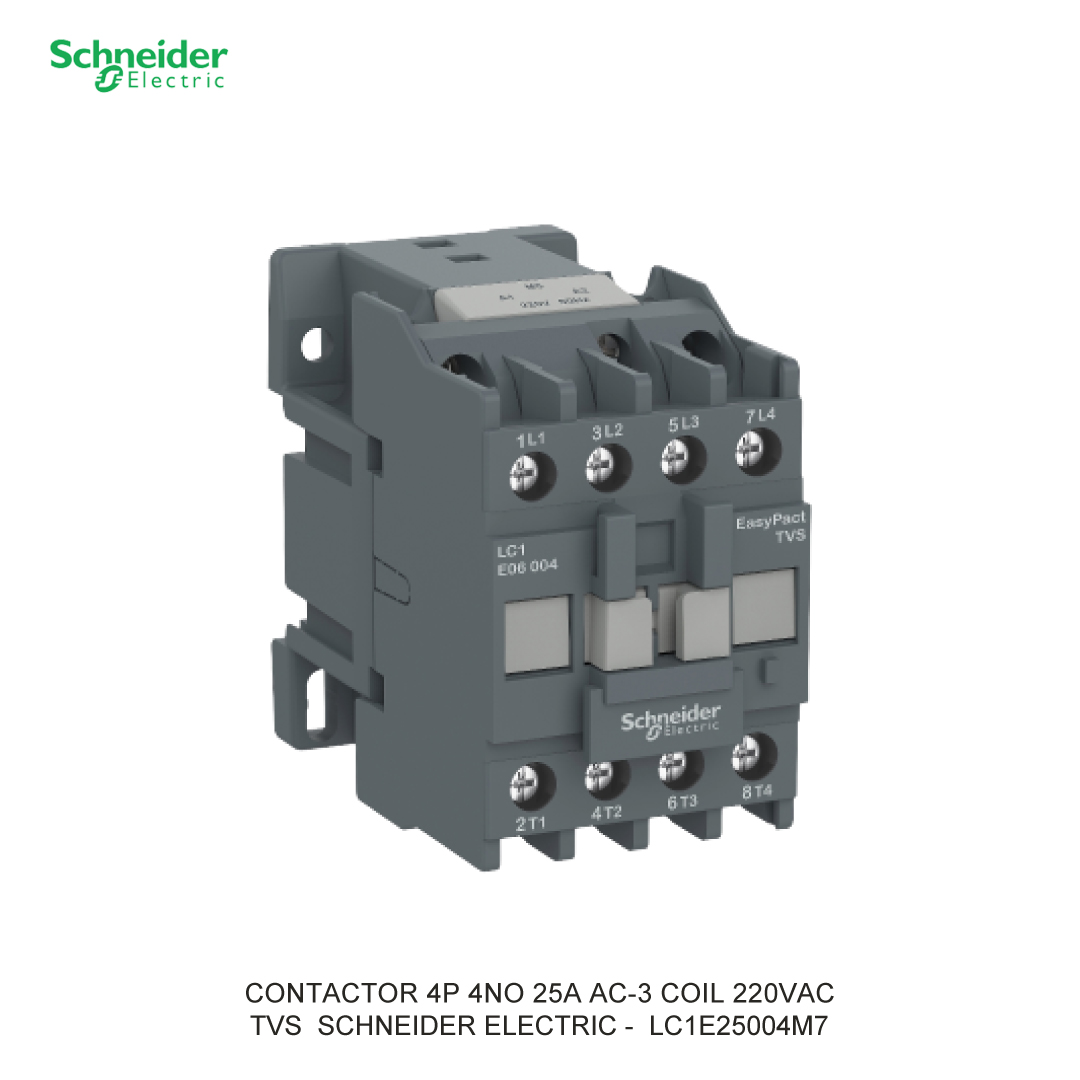

CONTACTOR 4P 25A AC-3 COIL 220VAC 4NO

Pilih Arus pengenal
Pilih Kontak bantu
Kode Produk LC1E25004M7
Nama Produk CONTACTOR 4P 25A AC-3 COIL 220VAC 4NO
Keterangan TVS SCHNEIDER ELECTRIC - LC1E25004M7
Brand Schneider Electric
Rated Current 25A
Pole Contact Composition 4NO
Control Circuit Voltage 220VAC
Tipe EasyPact TVS
Ketersediaan Stok

To Download The Datasheets Please Click LC1E25004M7!

The Easy TeSys Control Contactor LC1E25004M7 CONTACTOR TVS LC1E / EASYPACT TVS LC1E is a 4-pole contactor designed for AC-1 category applications up to 40A. It features a 220V AC 50/60Hz coil and 4 NO (normally open) main contacts. It is equipped with screw clamp terminals for power and control connections, has a width of 45 mm, and is designed for DIN rail mounting. It supports up to 1,800 operating cycles per hour, with an electrical durability of 0.35 million cycles and a mechanical durability of 8 million cycles. The unit operates within a temperature range of -5°C to 55°C and at altitudes of up to 3,000 meters without derating. It complies with relevant standards and meets Green Premium (RoHS/REACH) requirements.

•    Range of product: Easy TeSys Control
•    Product or component type: Contactor
•    Device short name: LC1E
•    Poles description: 4P
•    Control circuit voltage: 220 V AC 50/60 Hz
•    Pole contact composition: 4 NO
•    Auxiliary contact composition: None
•    Height: 64 mm
•    Width: 56 mm
•    Depth: 93 mm
•    Net weight: 0.52 kg

Shop for Schneider Electric products securely at ListrikKita.com an official distributor of the Schneider Electric brand in Indonesia. We guarantee product authenticity, provide an official warranty, and offer dedicated service support for your needs. For the best pricing and further information, please contact our sales or marketing team by clicking here. Happy shopping!

Easy TeSys Control contactor 4 poles for category AC-1 applications up to 40A. It provides a 220V 50/60Hz AC coil, 4NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 0.35 Mcycles electrical durability and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Specification
Type of electrical connection of main circuit Screw connection
Width 56 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 4
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 0
Modular version FALSE
Operating voltage AC 50 Hz 690 Volt
Depth 93 Millimetre
Operating voltage AC 60 Hz 690 Volt
Rated operation current Ie at AC-1, 400 V 40 Ampere
Height 64 Millimetre
Voltage type for actuating AC
Documents
Image of product
Image of product
