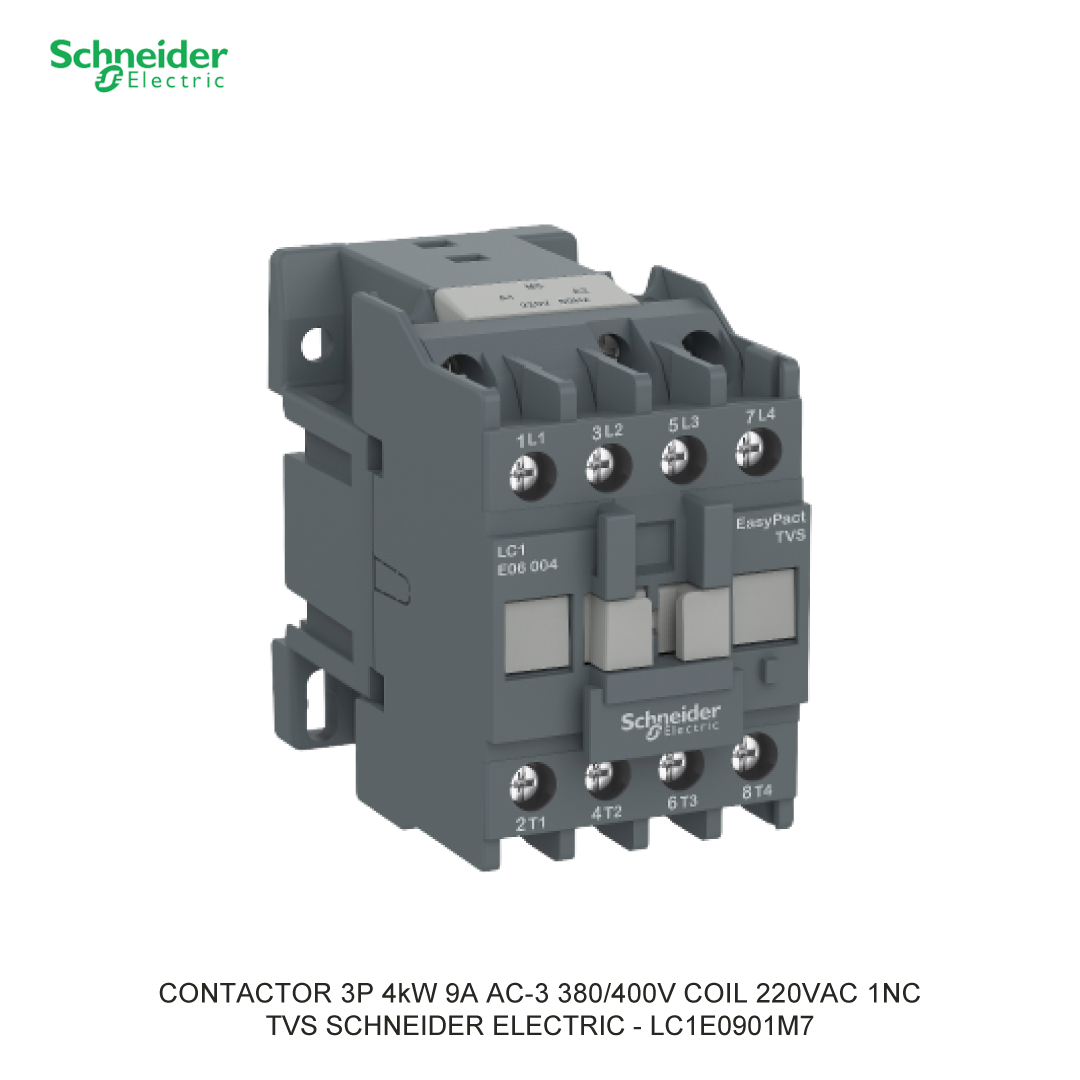

CONTACTOR 3P 4kW 9A AC-3 380/400V COIL 220VAC 1NC

Pilih Arus pengenal
Pilih Kontak bantu
Kode Produk LC1E0901M7
Nama Produk CONTACTOR 3P 4kW 9A AC-3 380/400V COIL 220VAC 1NC
Keterangan TVS SCHNEIDER ELECTRIC - LC1E0901M7
Brand Schneider Electric
Rated Current 9A
Pole Contact Composition 1NC
Control Circuit Voltage 220VAC
Tipe EasyPact TVS
Ketersediaan Stok

To Download The Datasheets Please Click LC1E0901M7!

The Easy TeSys Control LC1E0901M7 CONTACTOR TVS LC1E / EASYPACT TVS LC1E is a 3-pole contactor designed for motor applications up to 9 A or 4 kW at 440 V. It features a 220 V AC 50/60 Hz coil, one 1NC auxiliary contact, and screw terminals for power and control connections. It offers an electrical durability of up to 1.4 million cycles and a mechanical durability of 10 million cycles, with support for DIN rail mounting. The unit is certified by IEC, CCC, and EAC, and complies with Green Premium RoHS/REACH standards.

•    Range of product: Easy TeSys Control
•    Product or component type: Contactor
•    Device short name: LC1E
•    Poles description: 3P
•    Control circuit voltage: 220 V AC 50/60 Hz
•    Pole contact composition: 3 NO
•    Auxiliary contact composition: 1 NC
•    Height: 74 mm
•    Width: 45 mm
•    Depth: 80 mm
•    Net weight: 0.3 kg

Shop for Schneider Electric products securely at ListrikKita.com an official distributor for the Schneider Electric brand in Indonesia. We guarantee product authenticity, provide an official warranty, and offer dedicated support for your requirements. For the best pricing and further information, please contact our sales or marketing team by clicking here. Happy shopping!

Easy TeSys Control contactor 3 poles for motor applications up to 9A 4kW@440V. It provides a 220V 50/60Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Specification
Type of electrical connection of main circuit Screw connection
Width 45 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Rated operation power at AC-3, 400 V 4 Kilowatt
Number of normally closed contacts as main contact 0
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally closed contact 1
Number of auxiliary contacts as normally open contact 0
Modular version FALSE
Operating voltage AC 50 Hz 690 Volt
Depth 80 Millimetre
Operating voltage AC 60 Hz 690 Volt
Rated operation current Ie at AC-1, 400 V 25 Ampere
Rated operation current Ie at AC-3, 400 V 9 Ampere
Voltage type for actuating AC
Height 74 Millimetre
Documents
Image of product
Image of product

Stock Tersedia

Rp.210.909,-

42% Rp.363.636,-
