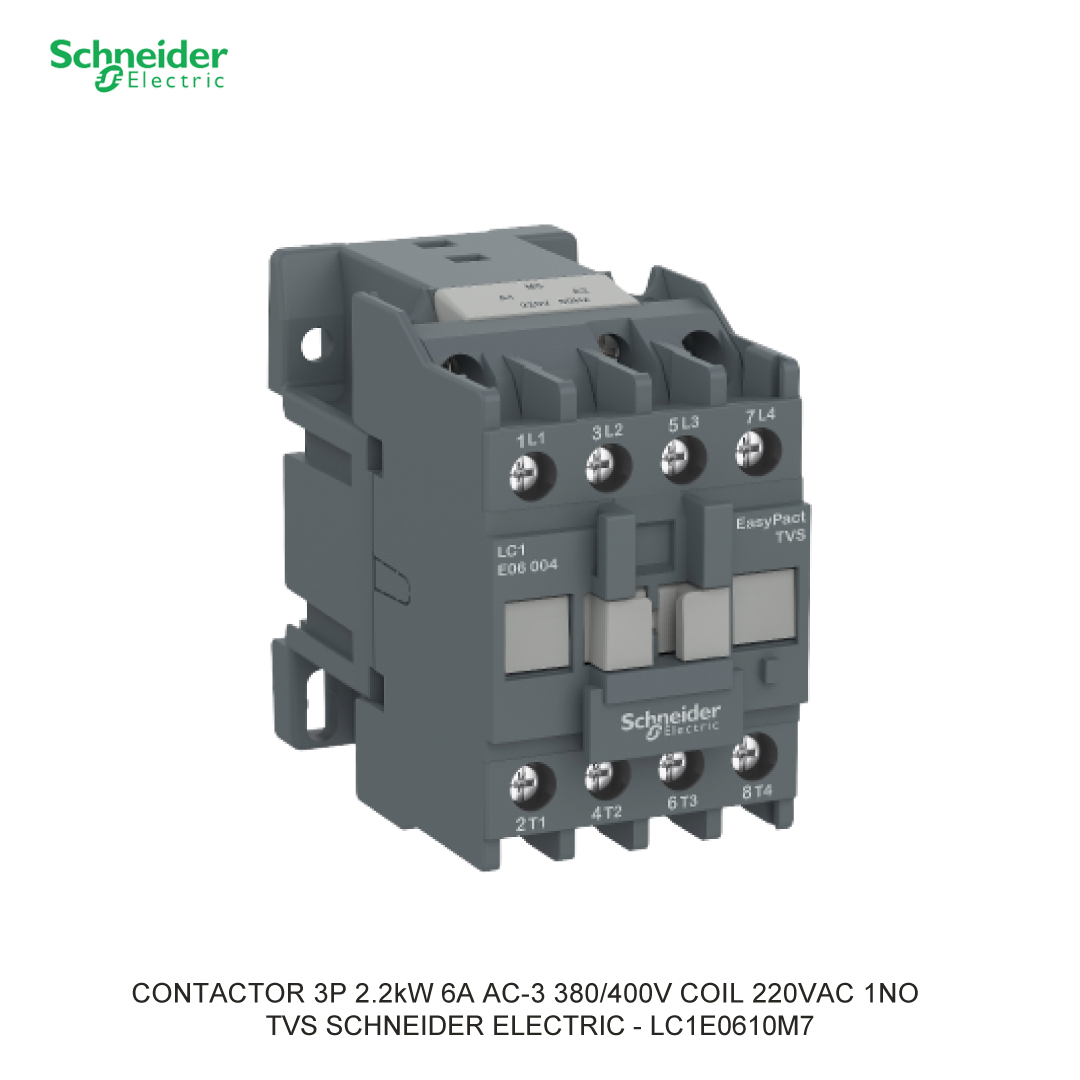

CONTACTOR 3P 2.2kW 6A AC-3 380/400V COIL 220VAC 1NO

Pilih Arus pengenal
Pilih Kontak bantu
Kode Produk LC1E0610M7
Nama Produk CONTACTOR 3P 2.2kW 6A AC-3 380/400V COIL 220VAC 1NO
Keterangan TVS SCHNEIDER ELECTRIC - LC1E0610M7
Brand Schneider Electric
Arus Pengenal 6A
Kontak Bantu 1NO
Tegangan Coil 220VAC
Tipe EasyPact TVS
Ketersediaan Stok

Untuk Mengunduh Lembar Data Produk Silahkan Klik LC1E0610M7!

Easy TeSys Control LC1E0610M7 KONTAKTOR TVS LC1E / EASYPACT TVS LC1E kontaktor 3 kutub untuk aplikasi motor hingga 6 A atau 2,2 kW pada 440 V. Dilengkapi koil AC 220 V 50/60 Hz, 1 kontak bantu 1NO, serta terminal sekrup untuk koneksi daya dan kontrol. Memiliki ketahanan listrik hingga 1,4 juta siklus dan mekanis 10 juta siklus, serta mendukung pemasangan DIN rail. Bersertifikasi IEC, CCC, dan EAC serta memenuhi standar Green Premium RoHS/REACH.

• Berbagai produk: Kontrol TeSys yang Mudah
• Tipe produk atau komponen: Kontaktor
• Nama pendek perangkat: LC1E
• Deskripsi tiang : 3P
• tegangan rangkaian kendali : 220 V AC 50/60 Hz
• Komposisi kontak tiang : 3 NO
• Komposisi kontak bantu : 1 NO
• Tinggi: 74mm
• Lebar: 45mm
• Kedalaman: 80 mm
• Berat bersih: 0,3 kg

Belanja produk Schneider Electric dengan aman hanya di ListrikKita.com sebagai Distributor resmi dari brand Schneider Electric di Indonesia. Kami menjamin keaslian produk, garansi resmi, serta dukungan layanan untuk kebutuhan Anda. Untuk mendapatkan harga terbaik dan informasi lebih lanjut, silakan hubungi tim sales atau marketing kami dengan mengklik disini. Selamat berbelanja!

Easy TeSys Control contactor 3 poles for motor applications up to 6A 2.2kW@440V. It provides a 220V 50/60Hz AC coil, 1NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 45mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1.4 Mcycles electrical durability AC-3 and 10 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Specification
Type of electrical connection of main circuit Screw connection
Width 45 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Number of normally closed contacts as main contact 0
Rated operation power at AC-3, 400 V 2.2 Kilowatt
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 1
Modular version FALSE
Operating voltage AC 50 Hz 690 Volt
Depth 80 Millimetre
Operating voltage AC 60 Hz 690 Volt
Rated operation current Ie at AC-1, 400 V 20 Ampere
Rated operation current Ie at AC-3, 400 V 6 Ampere
Height 74 Millimetre
Voltage type for actuating AC
