CONTACTOR 3P 15kW 32A AC-3 380/400V COIL 220VAC 1NO

Pilih Arus pengenal
Pilih Kontak bantu
Kode Produk LC1E3210M7
Nama Produk CONTACTOR 3P 15kW 32A AC-3 380/400V COIL 220VAC 1NO
Keterangan TVS SCHNEIDER ELECTRIC - LC1E3210M7
Brand Schneider Electric
Arus Pengenal 32A
Kontak Bantu 1NO
Tegangan Coil 220VAC
Tipe EasyPact TVS
Ketersediaan Stok
Kode Produk : LC1E3210M7 Brand : Schneider Electric Nama Produk : CONTACTOR 3P 15kW 32A AC-3 380/400V COIL 220VAC 1NO Keterangan : TVS SCHNEIDER ELECTRIC - LC1E3210M7

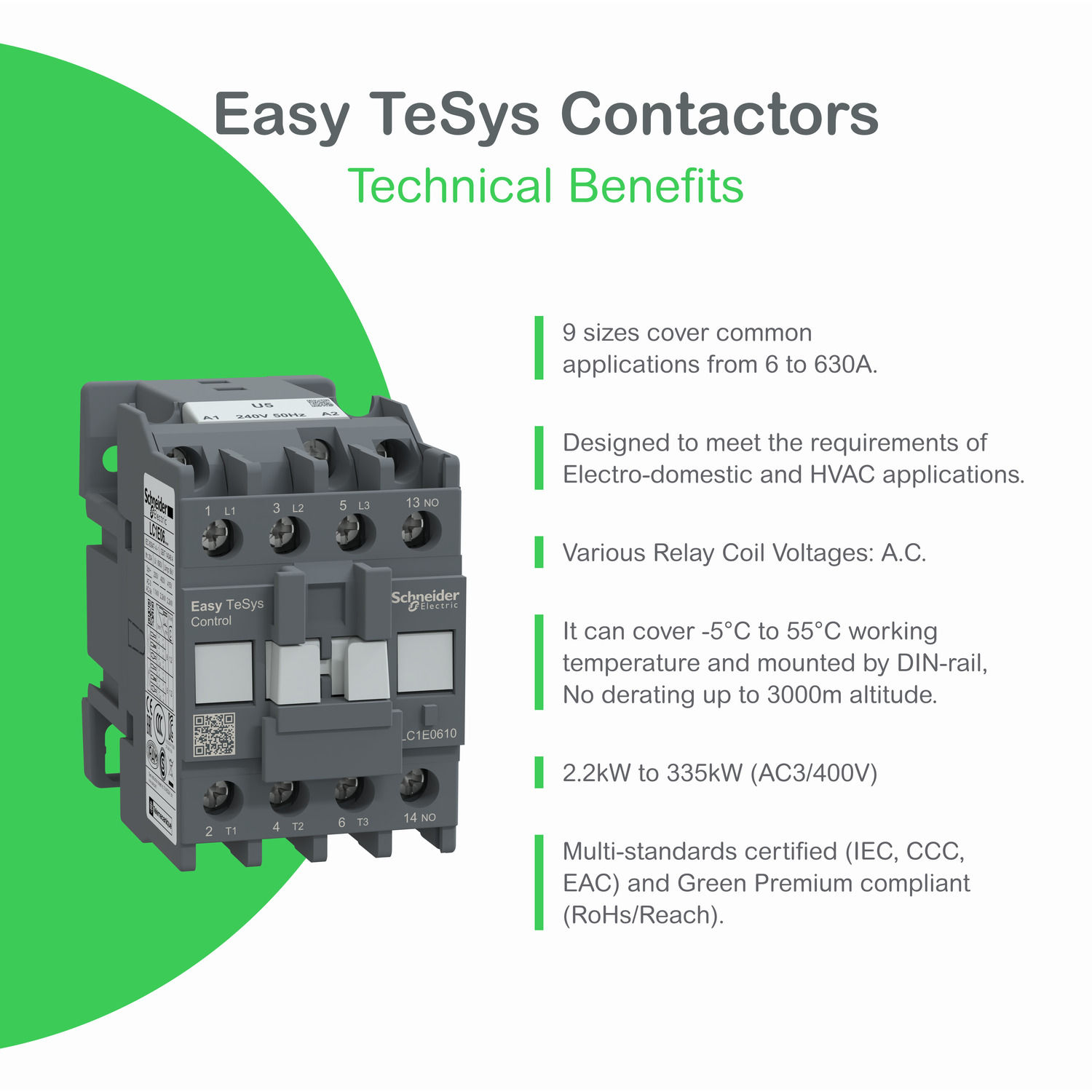

Easy TeSys Control contactor 3 poles for motor applications up to 32A 15kW@440V. It provides a 220V 50/60Hz AC coil, 1NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 56mm width for standard operating rates up to 1800 cycles per hour. It procures standard reliability and durability with 1 Mcycles electrical durability AC-3 and 8 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).

Specification
Type of electrical connection of main circuit Screw connection
Width 56 Millimetre
Rated control supply voltage AC 50 Hz 220 Volt
Rated control supply voltage AC 60 Hz 220 Volt
Number of normally closed contacts as main contact 0
Rated operation power at AC-3, 400 V 15 Kilowatt
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally closed contact 0
Number of auxiliary contacts as normally open contact 1
Modular version FALSE
Operating voltage AC 50 Hz 690 Volt
Depth 86 Millimetre
Operating voltage AC 60 Hz 690 Volt
Rated operation current Ie at AC-1, 400 V 50 Ampere
Height 84 Millimetre
Rated operation current Ie at AC-3, 400 V 32 Ampere
Voltage type for actuating AC
Documents

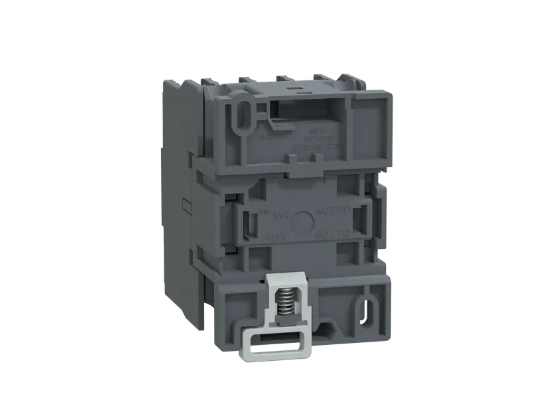

Image of product

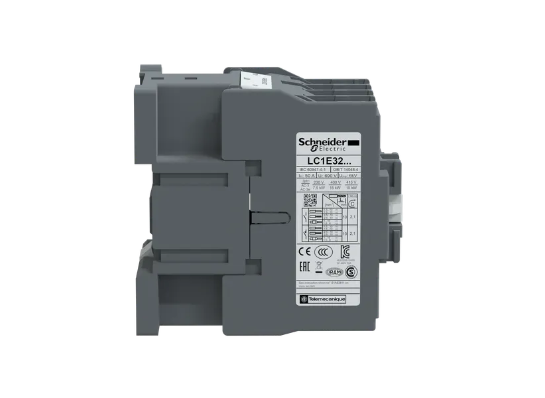

Image of product

Stock Tersedia

Rp.538.461,-

45% Rp.979.020,-

Add to Cart
