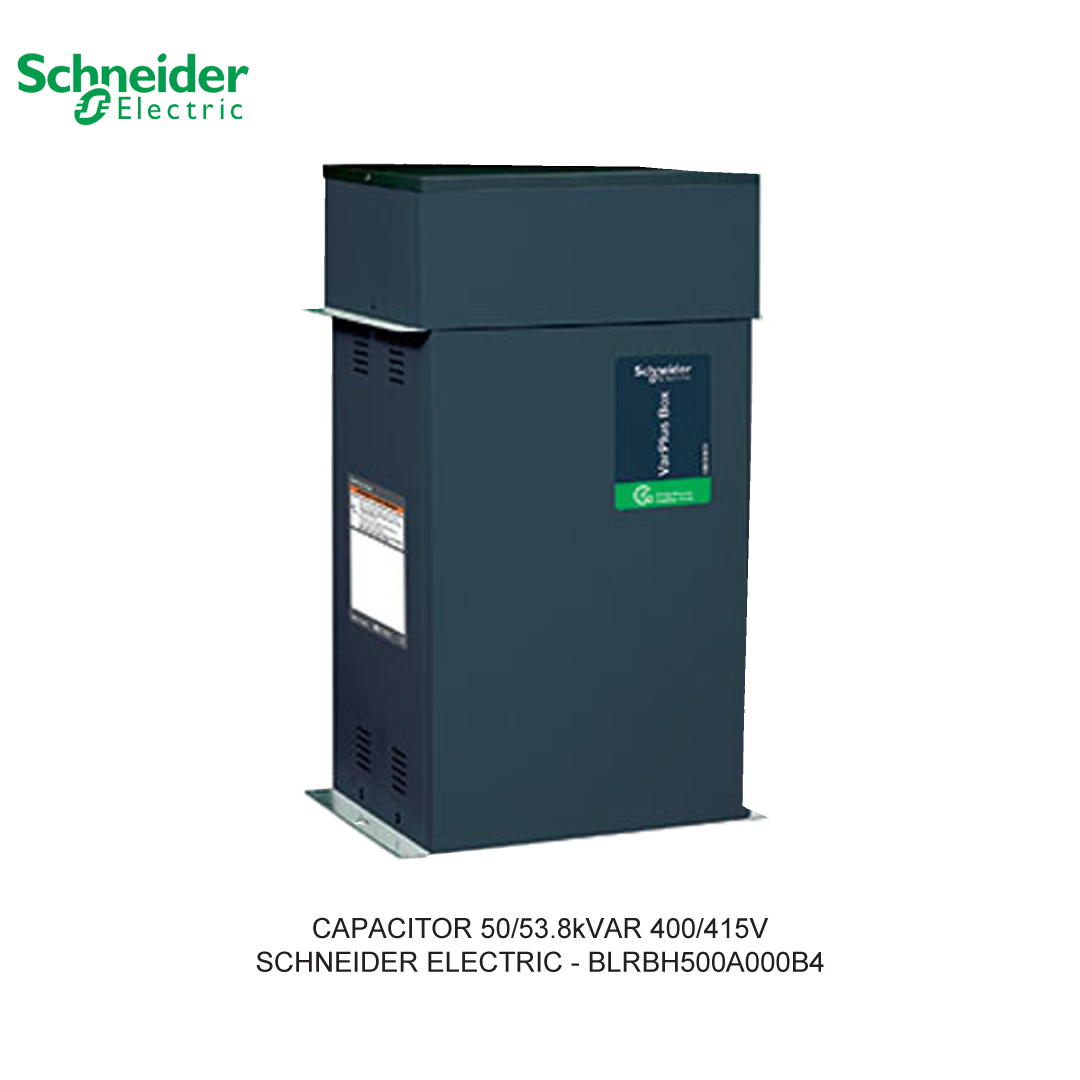

CAPACITOR 50/53.8kVAR 400/415V
| Kode Produk | BLRBH500A000B40 | ||||||||||||||||
| Nama Produk | CAPACITOR 50/53.8kVAR 400/415V | ||||||||||||||||
| Keterangan | CAPACITOR BOX HEAVY DUTY 400V - BLRBH500A000B40 | ||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||
| Tipe | Capacitor | ||||||||||||||||
| kVAR | 50kVAR | ||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||
|
CAPACITOR BOX HEAVY DUTY 50/0 KVAR 400V - BLRBH500A000B40 VarPlus Box capacitor are a robust, safe, reliable and high-performance solution for power factor correction in standard operating conditions. These capacitors are particularly used for networks with a significant number of non-linear loads. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 45.1 kVar at 380V AC, 50 Hz. Fastening assured by a M10 stud with bushing terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The dimensions of the case are 309mm in height, 309mm in width and 224mm in depth. For a product weight of 10 kg. Specification
