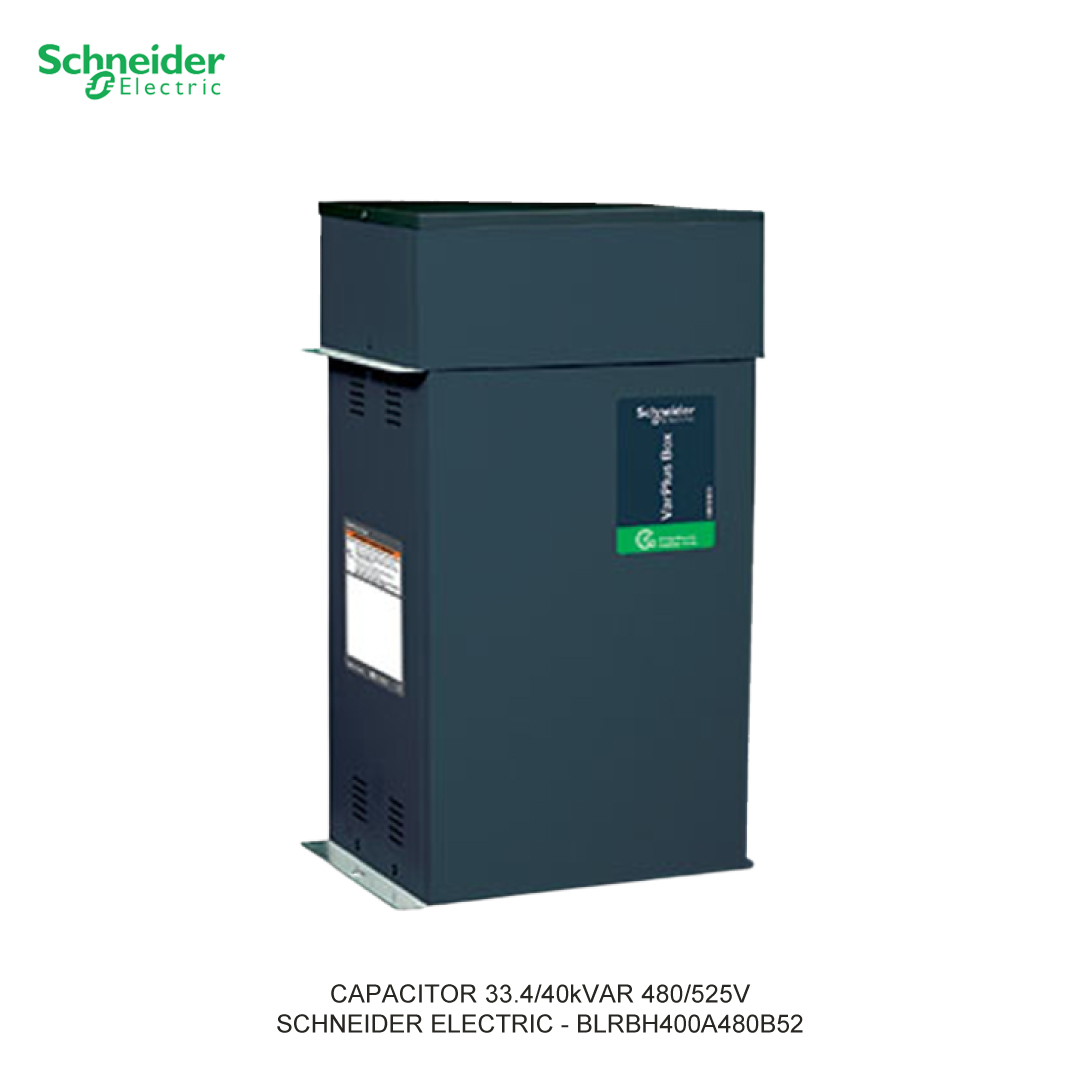

CAPACITOR 33.4/40kVAR 480/525V

VarPlus Box capacitor are a robust, safe, reliable and high-performance solution for power factor correction in standard operating conditions. These capacitors are particularly used for networks with a significant number of non-linear loads. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 40 kVar at 525V AC, 50 Hz. Fastening assured by a M10 stud with bushing terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The dimensions of the case are 309mm in height, 309mm in width and 224mm in depth. For a product weight of 10 kg.

Specification

Documents

• Declaration of conformity - CE_LV PFC Capacitor declaration of conformity
• Circularity Profile - PowerLogic PFC Capacitor, Circularity Profile, End of Life Instructions
• Instruction sheet - EasyLogic PFC/PFC+ / PowerLogic PFC - Box Capacitor - Instruction Sheet
• Environmental Disclosure - PowerLogic PFC Capacitor, Environmental Disclosure, Product Environmental Profile
• User guide - User Manual EN-CH-VarPlus Box_01
• Catalog - Low Voltage Power Factor Correction Components - Catalogue 2022
