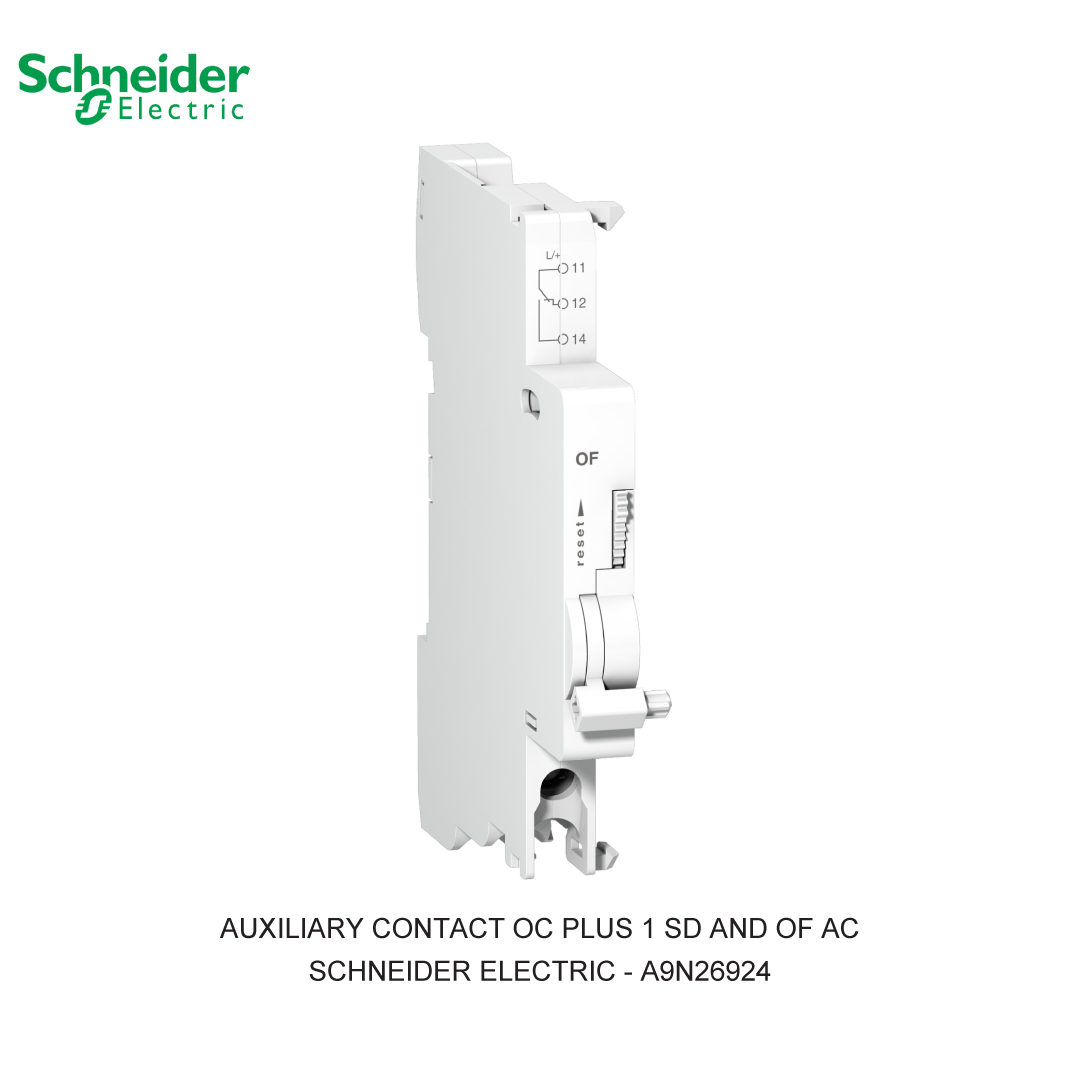

AUXILIARY CONTACT OC PLUS 1 SD AND OF AC
| Kode Produk | A9N26924 | ||||||||||||||||||||||
| Nama Produk | AUXILIARY CONTACT OC PLUS 1 SD AND OF AC | ||||||||||||||||||||||
| Keterangan | ACCESSORIES MCB C120, DPN, C60, SW60-DC SCHNEIDER ELECTRIC - A9N26924 | ||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||
| Tipe | Accessories MCB | ||||||||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||||||||
|
Download the A9N26924 AUXILIARY CONTACT OC PLUS 1 SD AND OF AC SCHNEIDER ELECTRIC product datasheet, by clicking here! Function of the Miniature Circuit Breaker (MCB):
Schneider Acti9 VOLTAGE RELEASE MNX for MCBs & RCDs Designed with protection and a wide range of features, the Acti9 tripping management and DIN rail tripping system combines easy installation with high functionality. Includes: automatic recovery, remote control, remote indication, and tripping. VisiTrip for rapid detection of faulty insulators and reduced intervention time. Clip-on assembly system for ease of use. It is used to enhance protection in commercial and industrial buildings, while addressing tripped circuits caused by: short circuits, overcurrents, ground leakage currents, voltage drops, and manual safety tripping. You can shop safely at ListrikKita.com because all the goods we sell are guaranteed to be 100% genuine, have an official guarantee, and can be accompanied by a letter of authenticity. To get the best MCB prices and further information, please contact our sales or marketing team by clicking here. Happy shopping. This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40 products. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85.3mm x (D) 73.5mm. Product weight is 30g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25°C to +50°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 standard. Specification
