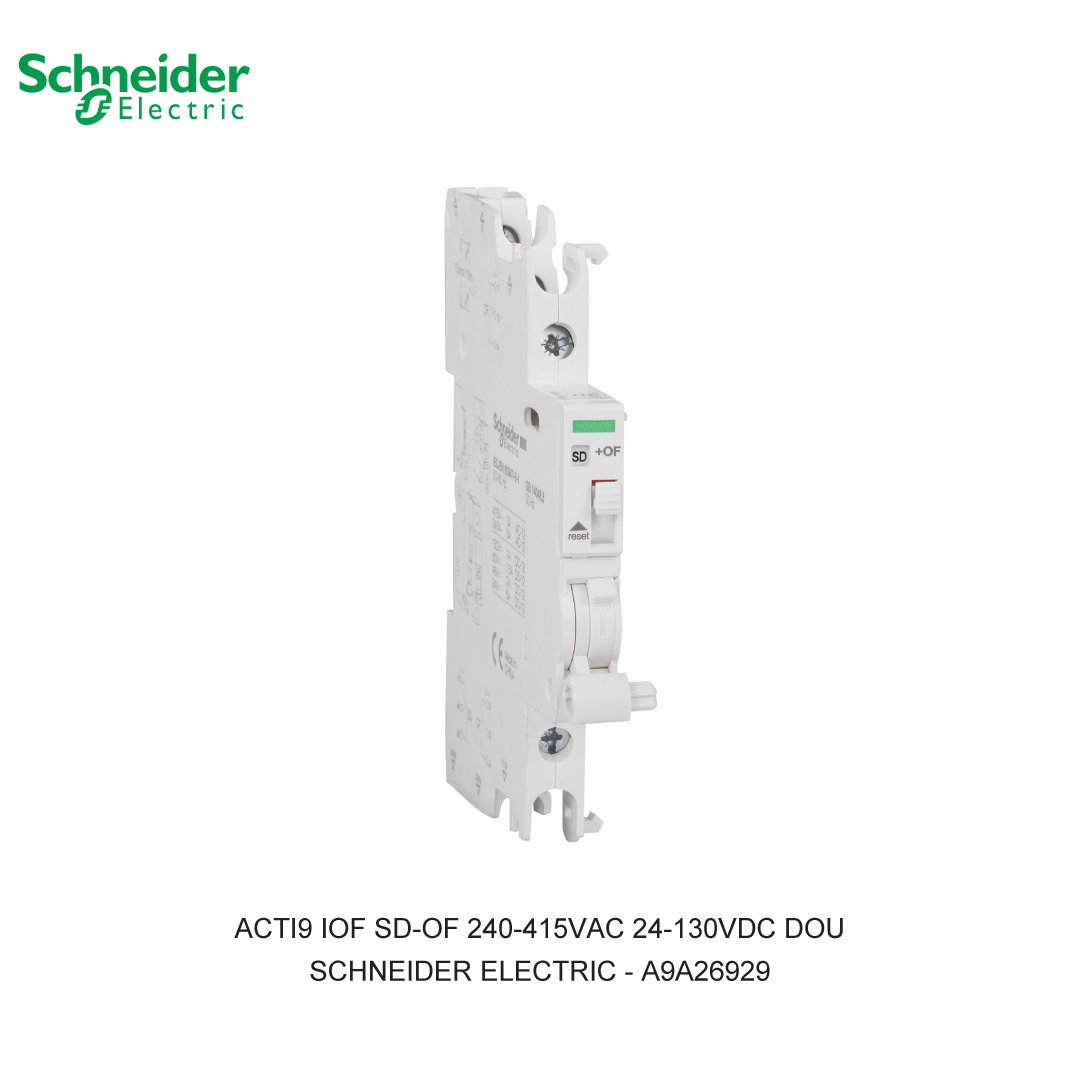

ACTI9 IOF SD-OF 240-415VAC 24-130VDC DOU
| Kode Produk | A9A26929 | ||||||||||||||||||||||
| Nama Produk | ACTI9 IOF SD-OF 240-415VAC 24-130VDC DOU | ||||||||||||||||||||||
| Keterangan | ACCESSORIES MCB IC60, IID, IDPN VIGI, RCA AND ARA SCHNEIDER ELECTRIC - A9A26929 | ||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||
| Tipe | Accessories MCB | ||||||||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||||||||
|
Untuk unduh datasheet produk A9A26929 Acti 9 Auxiliary contact iOF/SD+OF 2OC AC/DC, silakan klik di sini! Auxiliary Contact Schneider Electric Auxiliary Contact atau OC Contact merupakan kontak bantu, berupa saklar kecil yang terpasang pada perangkat kontrol listrik seperti pemutus arus, relai, dan juga kontaktor. Alat ini juga menjadi kontak tambahan yang membentuk bagian dari sirkuit untuk meningkatkan jumlah listrik yang bisa mengalir melalui sistem. Fungsi Auxiliary Contact:
Karakteristik Teknikal:
Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja! This Acti9 iOF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID products. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. Product weight is 32g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -35°C to +70°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 standard. Specification
