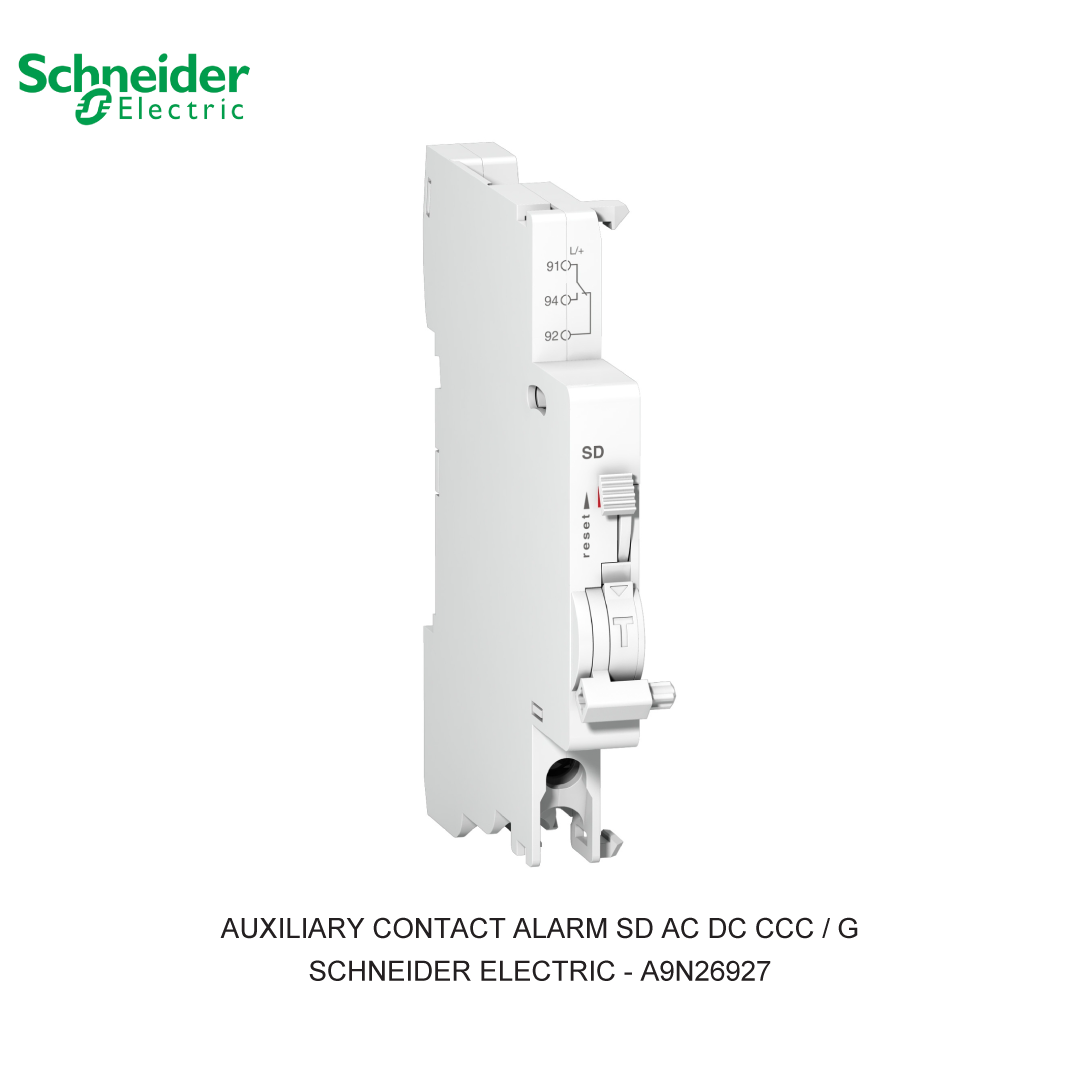

AUXILIARY CONTACT ALARM SD AC DC CCC / G

Download the A9N26927 AUXILIARY CONTACT ALARM SD AC DC CCC / G SCHNEIDER ELECTRIC product datasheet, by clicking  here!

Fungsi Pemutus Sirkuit Miniatur (MCB):

• Kode Produk: A9N26927
• Merek: Schneider Electric
• Nama Produk: AUXILIARY CONTACT ALARM SD AC DC CCC / G
• Deskripsi: ACCESSORIES MCB C120, DPN, C60, SW60-DC SCHNEIDER ELECTRIC - A9N26927
• Kisaran produk: Acti9
• Jenis produk atau komponen: Kontak gangguan
• Nama singkat perangkat: SD
• Komposisi kontak sinyal: 1 C/O
• Mode pemasangan: Tetap
• Dukungan pemasangan: Rel DIN
• Kompatibilitas busbar sisir dan blok distribusi: Atas: YA
• Tinggi: 85,3 mm
• Lebar: 9 mm
• Kedalaman: 73,5 mm
• Berat bersih: 30 g
• Warna: Putih
• Garansi (dalam bulan): 18

Acti9 VOLTAGE RELEASE MNX for MCBs & RCDs Schneider Electric

Dirancang dengan perlindungan dan beragam fitur, sistem manajemen tripping Acti9 dan tripping rel DIN menggabungkan kemudahan instalasi dengan fungsionalitas tinggi. Termasuk: pemulihan otomatis, kendali jarak jauh, indikasi jarak jauh, dan tripping. VisiTrip untuk deteksi cepat isolator yang rusak dan waktu intervensi yang lebih singkat. Sistem rakitan clip-on untuk kemudahan penggunaan. Sistem ini digunakan untuk meningkatkan perlindungan di gedung komersial dan industri, sekaligus mengatasi sirkuit tripping yang disebabkan oleh: hubung singkat, arus lebih, arus bocor arde, penurunan tegangan, dan tripping pengaman manual.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi dan dapat disertai dengan surat keaslian barang. Untuk dapatkan harga MCB terbaik dan informasi lebih lanjut bisa menghubungi tim sales atau marketing kami silakan klik disini. Selamat berbelanja.

This Acti9 SD electric auxiliary is a remote fault indicator contact. It is dedicated to Acti9 C120, C60H-DC, DPN N Vigi. It comes with 1 changeover contact indicating the position of the associated device. It indicates the position of the associated device in the event of electrical fault or action on the tripping auxiliary. The width in 9mm pitches is 1. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator and a test function button on the front face. Be careful, this device is not compatible with an ID residual current circuit breaker. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.

Specification

Number of contacts as normally open contact	0
Suitable for max. current main contact unit	125 Ampere
Number of contacts as change-over contact	1
Rated voltage	240 Volt
Rated switch current	6 Ampere
Number of contacts as normally closed contact	0
With auto test for earth leakage function	FALSE
Width in number of modular spacings	0.5
Device fitting	Miniature circuit breaker (MCB)
Suitable for max. number of poles main contact unit (total)	4
Number of fault-signal switches	1

Documents

• Declaration of conformity - EU_doc_Auxiliaries_contact
• Brochure - Acti9 auxiliaries brochure
• Circularity Profile - Acti9 - Auxiliary Contact - iOF 1OC 100mA-6A - Product End of Life Instructions
