RELAY THERMAL BEBAN LEBIH 12-18A
| Pilih Tipe |
|
||||||||||||||||||||||
| Pilih Arus pengenal |
|
||||||||||||||||||||||
| Kode Produk | LRD21 | ||||||||||||||||||||||
| Nama Produk | RELAY THERMAL BEBAN LEBIH 12-18A | ||||||||||||||||||||||
| Keterangan | TESYS D SCHNEIDER ELECTRIC - LRD21 | ||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||
| Arus Pengenal | 12-18A | ||||||||||||||||||||||
| Tipe | TeSys D | ||||||||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||||||||
|

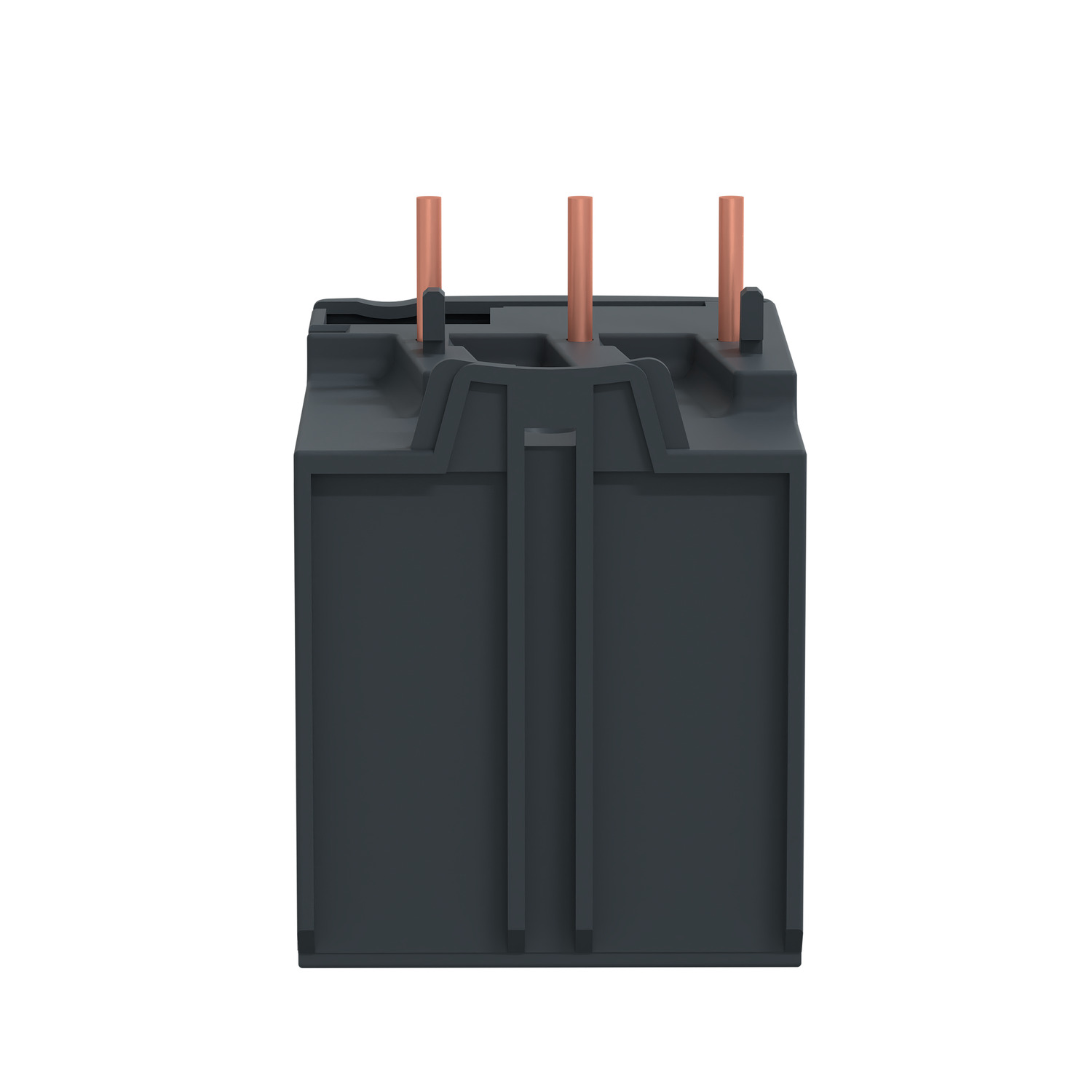

Untuk video penjelasan mengenai produk dapat klik disini! TeSys LRD thermal overload relay, 18A/690V, thermal setting range 12-18A, tripping class 10A, for protection of 3-phase motors 7.5kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D18-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach). Specification
