REGULATED POWER SUPPLY 100-240VAC 5V 3.6A SINGLE PHASE MODULAR
| Pilih Tegangan input |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pilih Arus |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Kode Produk | ABLM1A05036 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Nama Produk | REGULATED POWER SUPPLY 100-240VAC 5V 3.6A SINGLE PHASE MODULAR | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Keterangan | REGULATED POWER SUPPLY SCHNEIDER ELECTRIC - ABLM1A05036 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand | Schneider Electric | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tipe | Modicon ABLM & ABLS & ABL8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ketersediaan Stok |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Untuk unduh datasheet produk ABLM1A05036 REGULATED POWER SUPPLY 100-240VAC 5V 3.6A SINGLE PHASE MODULAR SCHNEIDER ELECTRIC, silahkan klik di sini! Karakteristik Teknikal:

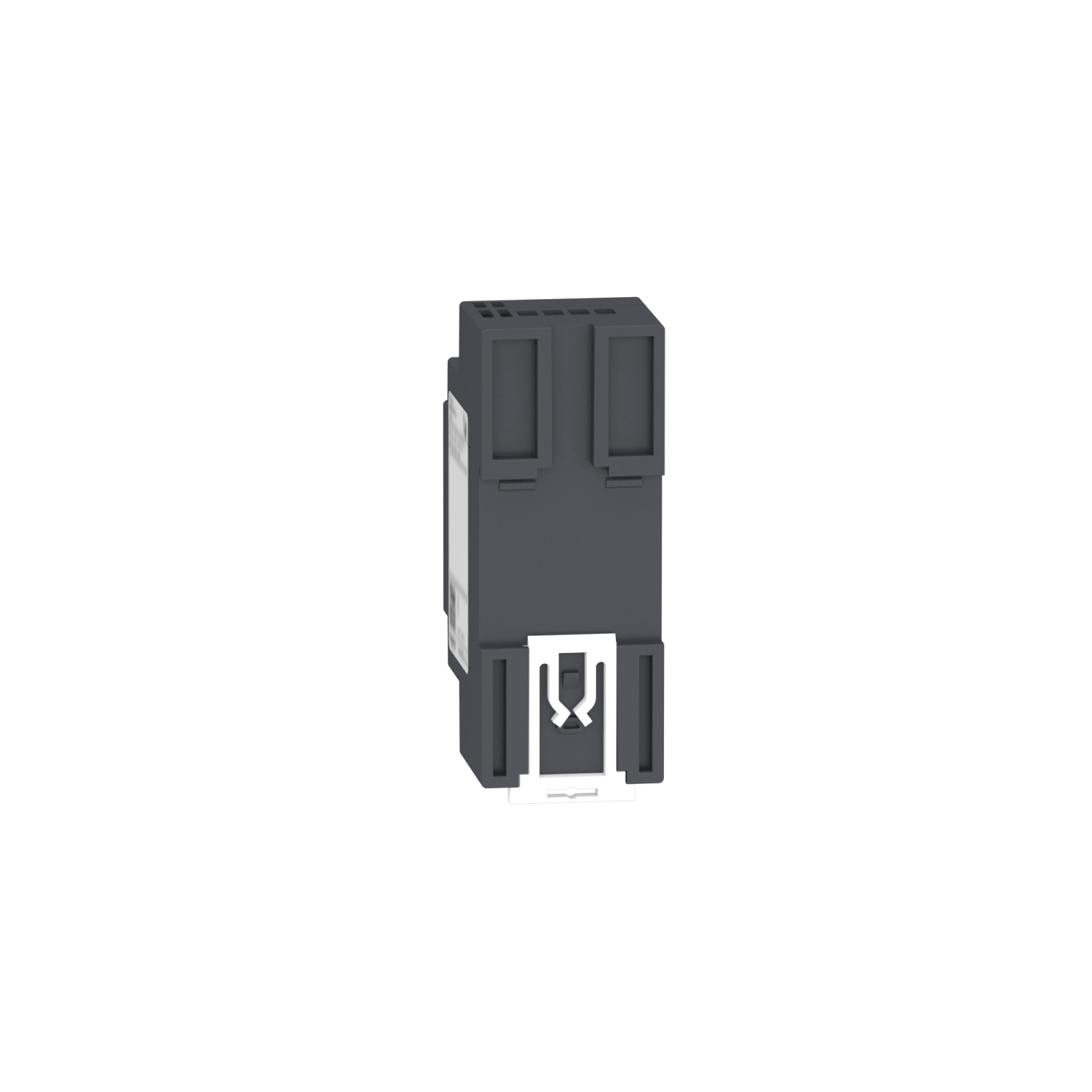

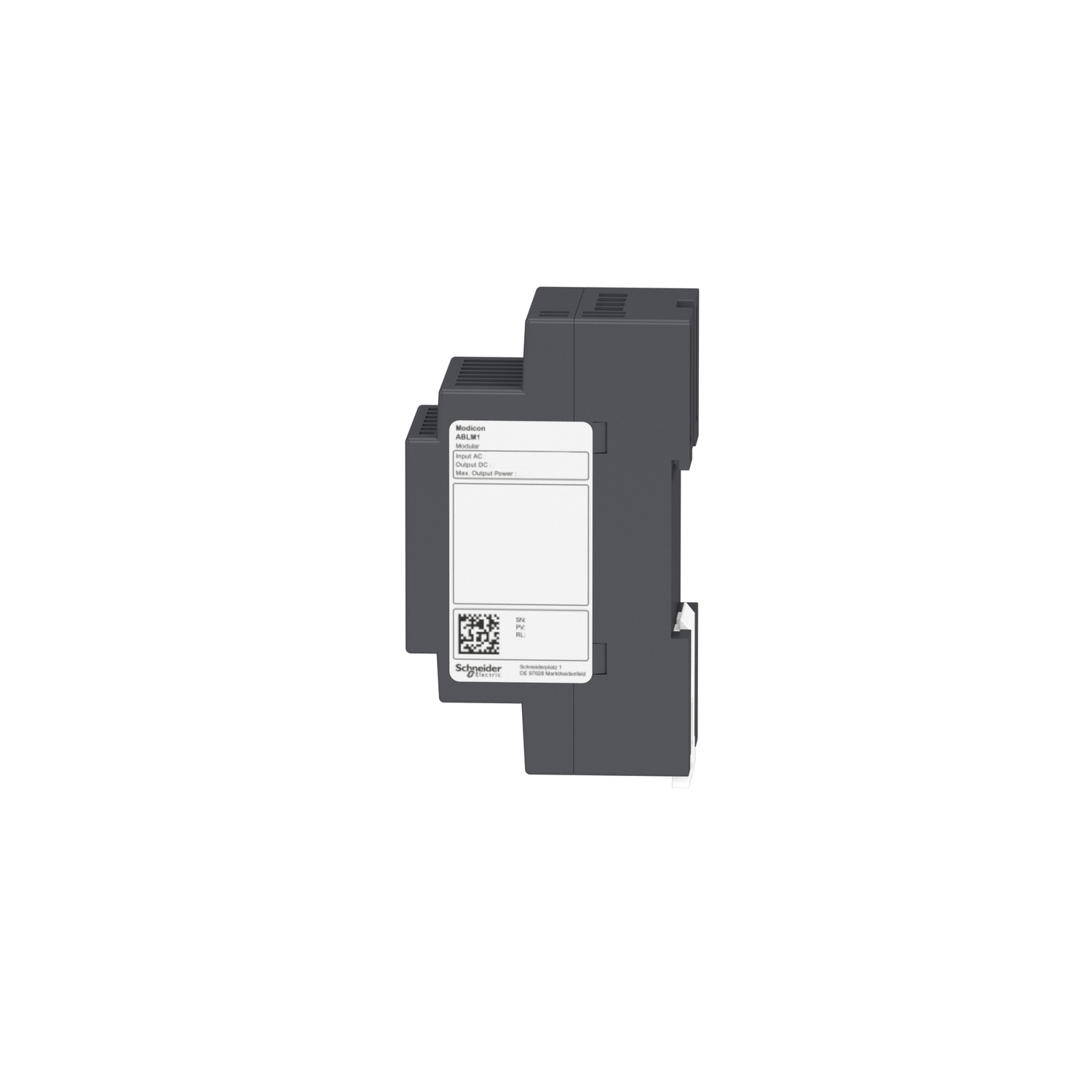

Power supplies for industrial use, rail mounting Schneider Electric Penawaran catu daya mode sakelar Modicon dirancang untuk menyediakan tegangan DC yang diperlukan untuk rangkaian kontrol peralatan sistem otomasi. Catu daya industri Modicon adalah catu daya mode sakelar yang diatur, tersedia dalam 3 jenis: ABLM Modular, ABLS Optimised, ABLU3 dan ABL8RP/WP Universal. Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja! This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3,6A at 5V DC and a rated power output of 18W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve . It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness. Specification
