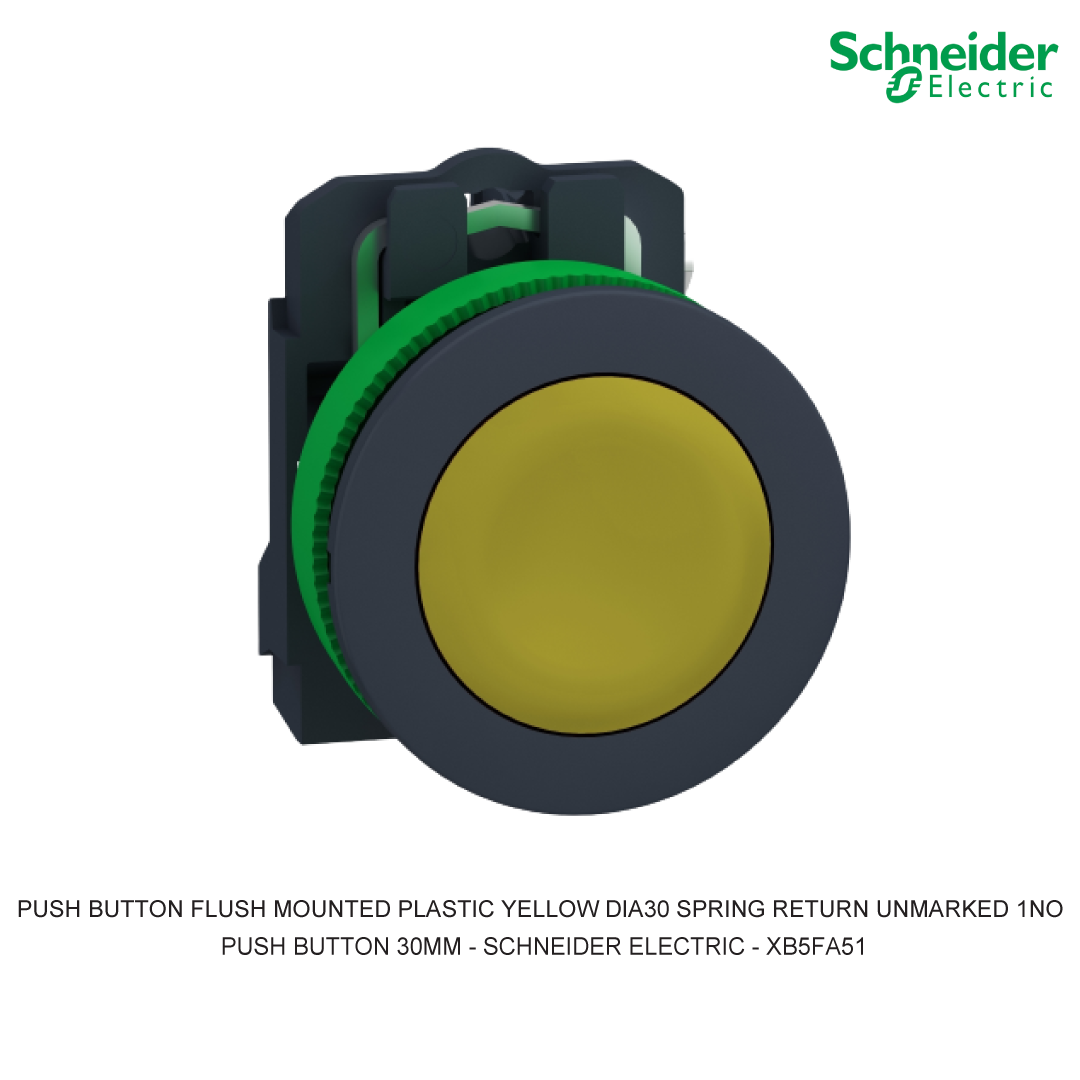

PUSH BUTTON FLUSH MOUNTED PLASTIC YELLOW DIA30 SPRING RETURN UNMARKED 1NO

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and yellow. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Specification

Documents

• Declaration of conformity - XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers
• Circularity Profile - XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions
• Environmental Disclosure - XB5 Plastic Non Illuminated Push Button - Product Environmental Profile
• Instruction sheet - XB4-XB5 - Mounting - Instruction Sheet
• Catalog - Discover the Harmony XB5 plastic Control and signaling units catalog
