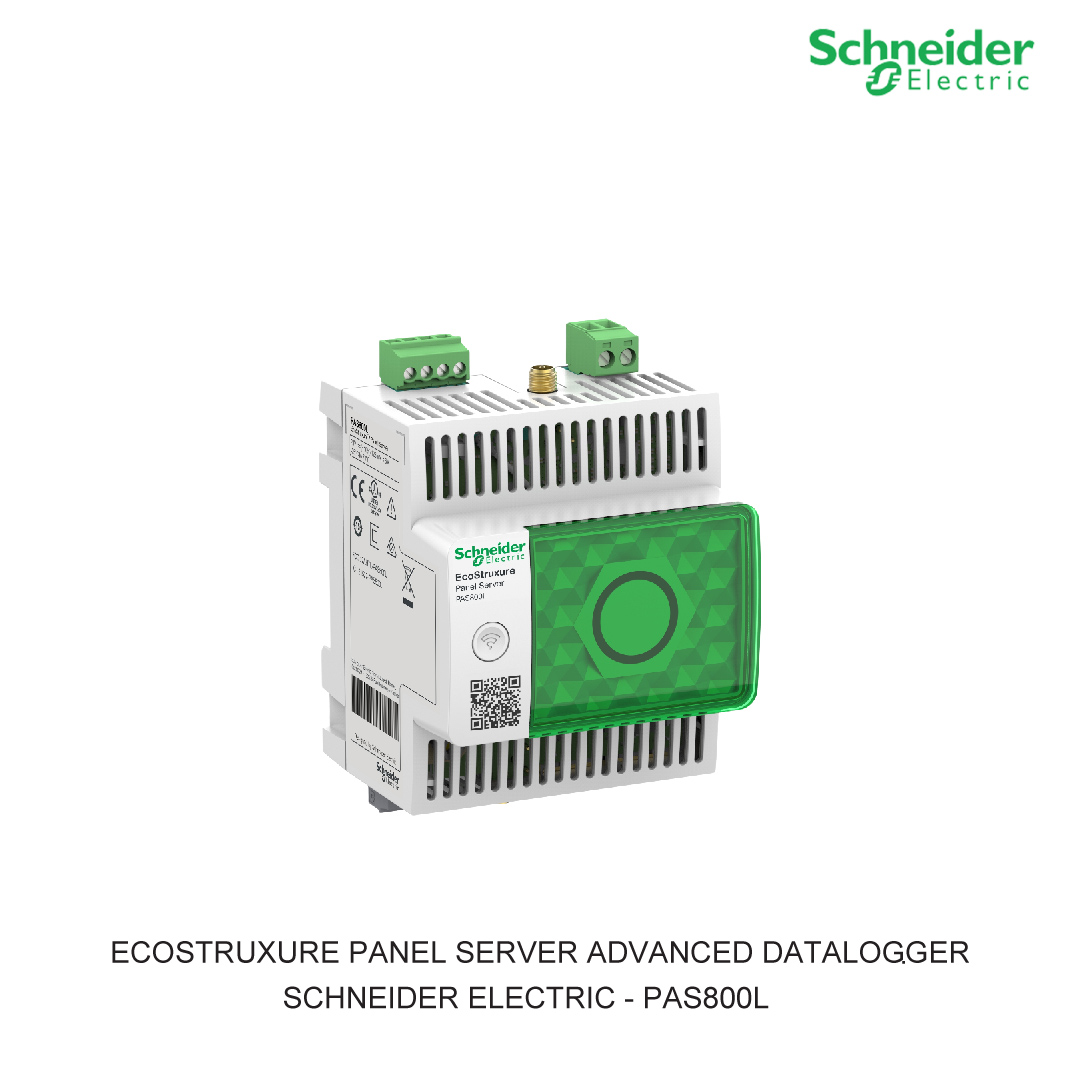

PANEL SERVER ADVANCED DATALOGGER ENERGY SERVER 24 VDC

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for external Wi-Fi/Bluetoth antenna. Connector for external antenna for wireless devices. Two connectors for Wi-Fi/Bluetooth external antenna and wireless devices external antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.

Specification

Documents

• Declaration of conformity - PAS800 serie EcoStruxure Panel Server UK Declaration of Conformity Schneider Electric
• Circularity Profile - EcoStruxure Panel Server, Circularity Profile, End of Life Instructions
• Brochure - EcoStruxure™ Panel Server: IoT for an intelligent power network
• Environmental Disclosure - EcoStruxure Panel Server, Environmental Disclosure, Product Environmental Profile
• Instruction sheet - EcoStruxure Panel Server Advanced (PA800 - PAS800L - PAS800P) - Instruction sheet
• User guide - EcoStruxure Panel Server - User Guide
• Catalog - PowerLogic Power Monitoring and Control Catalog - Web
• Promotional video - Discover EcoStruxure Panel Server
