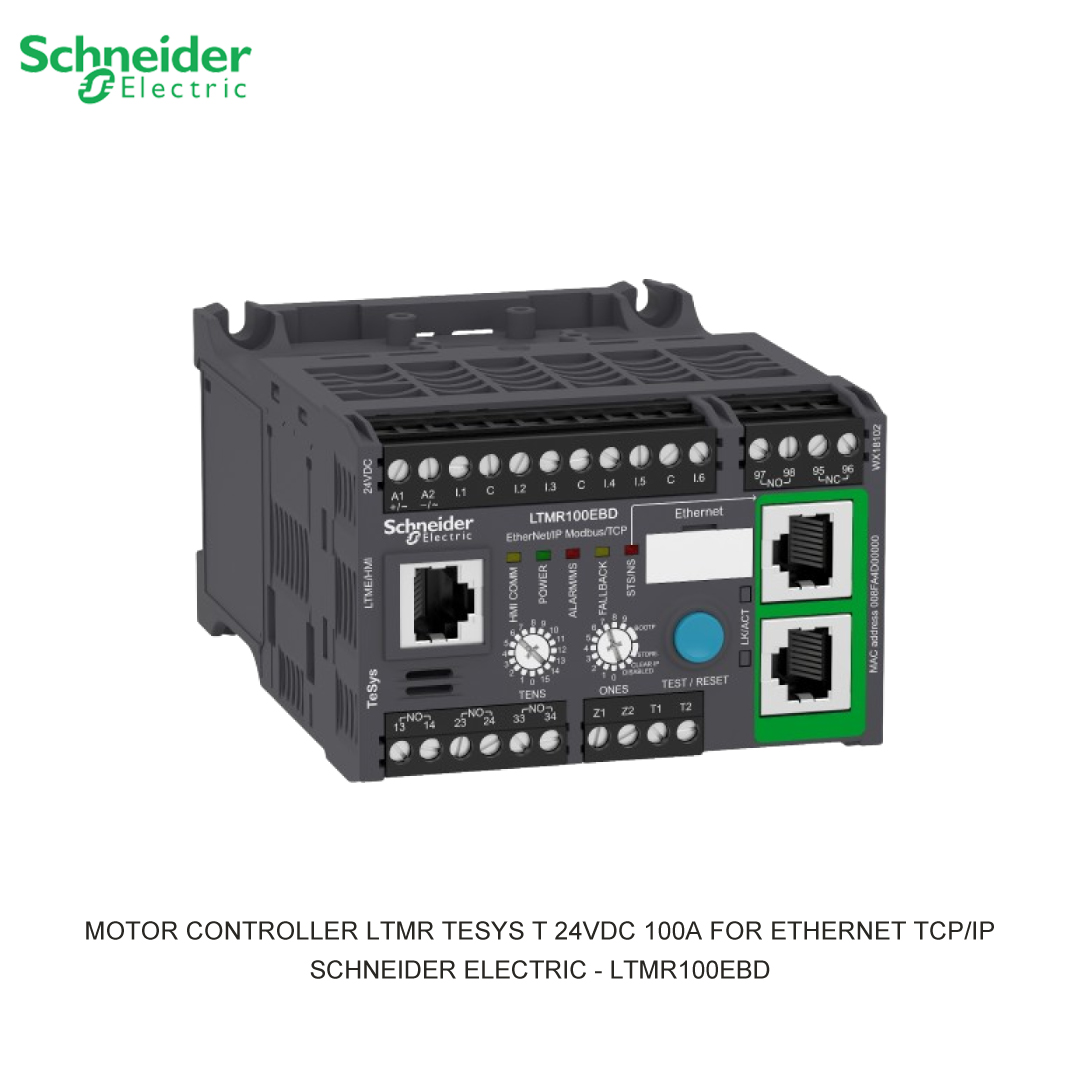

MOTOR CONTROLLER LTMR TESYS T 24VDC 100A FOR ETHERNET TCP/IP

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 24 VDC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Specification

Documents

• Circularity Profile - End-of-Life Instructions TeSys T
• Environmental Disclosure - Motor management system
• Instruction sheet - Replacing a MLP or MLPII SSOLR with a TeSys T MMS in AC Magnetic Starters, Size 3 - Installation
• User guide - TeSys T - Use in Explosive Atmospheres
• Catalog - TeSys - Catalog 2026 - Innovative and connected solutions for motor starters
