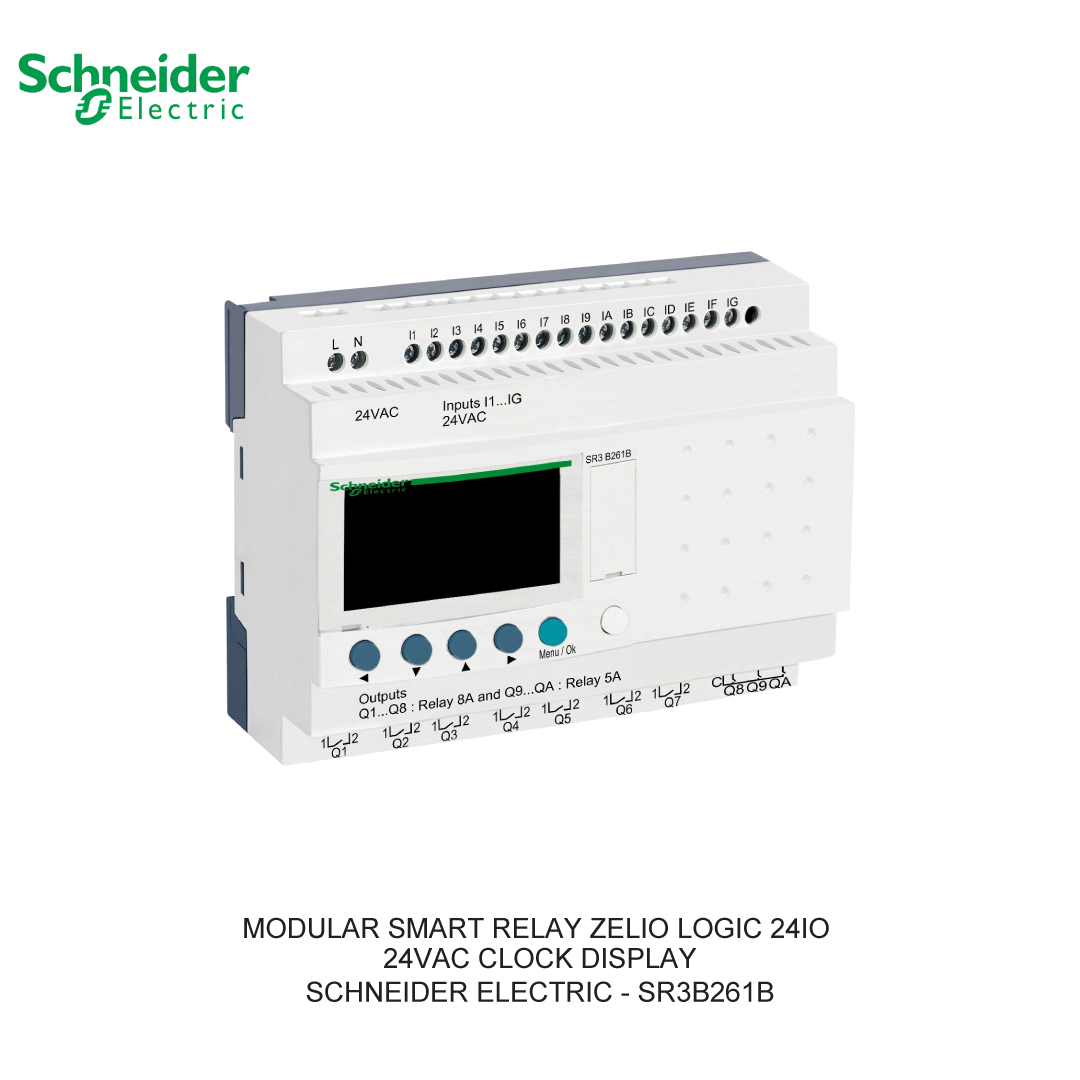

MODULAR SMART RELAY ZELIO LOGIC 24IO 24VAC CLOCK DISPLAY

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 10 relay outputs with normally opened contact and 16 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 280mA (without extension) and a power consumption of 7.5VA without extension. It is an IP20 and IP40 rated product. It weighs 0.4kg. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3 and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Specification

Documents

• Declaration of conformity - Zelio SR2 SR3 DoC
• Declaration of conformity -
• Circularity Profile - Zelio Logic Smart Relays
• Environmental Disclosure - Zelio Logic Smart Relays
• Instruction sheet - SR3B... Logic modular module Zelio with screen
• User guide - Zelio Logic Programming Guide
• Catalog - Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022
