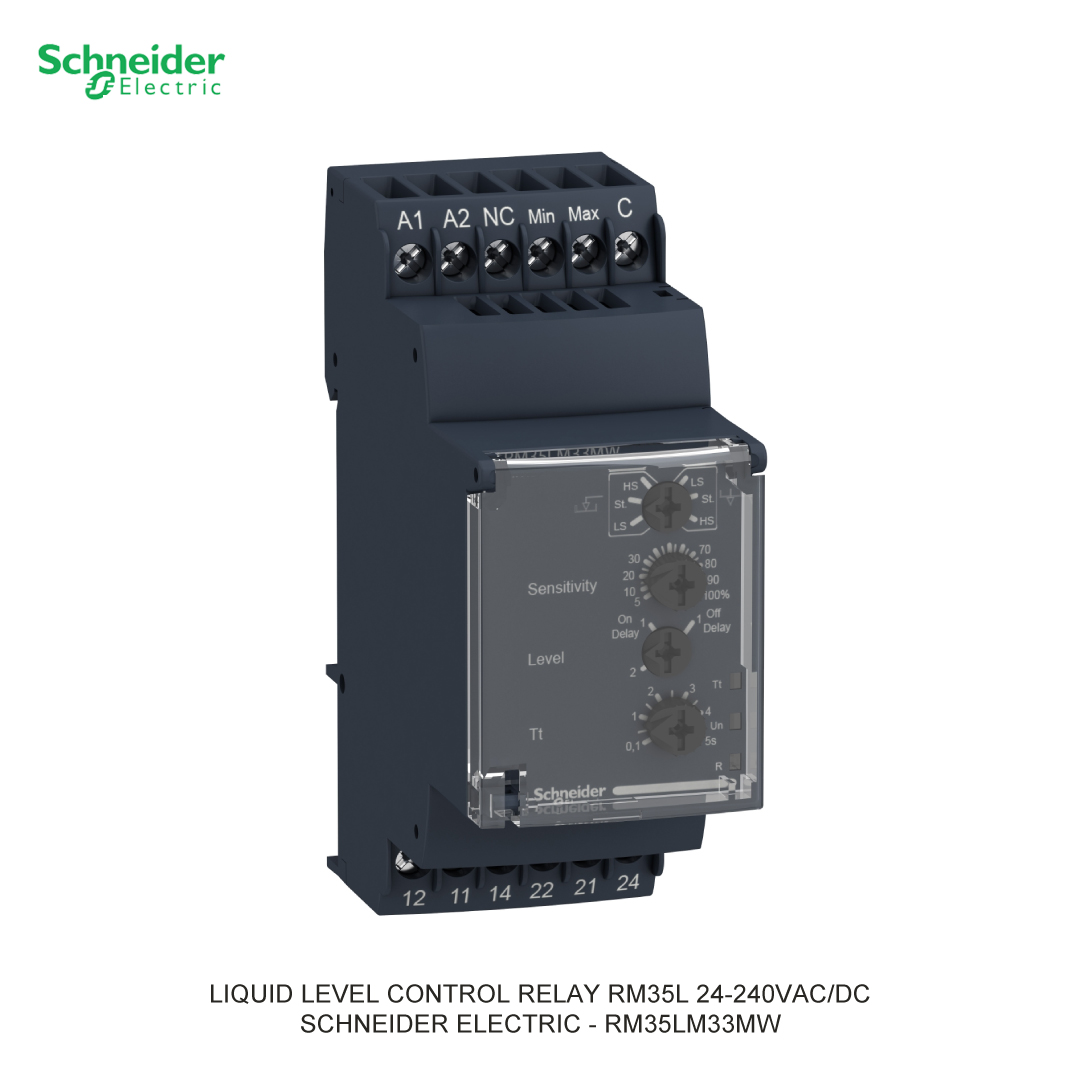

LIQUID LEVEL CONTROL RELAY RM35L 24-240V AC/DC SCHNEIDER ELECTRIC

Name: LIQUID LEVEL CONTROL RELAY RM35L 24-240V AC/DC SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
Price: 838430.18 IDR
Availability: InStock

Kode Produk

RM35LM33MW

Nama Produk

Keterangan

KONTROL LEVEL - RM35LM33MW

Brand

Schneider Electric

Tegangan Coil

24-240V AC/DC

Tipe

Control Relay

Ketersediaan Stok

${item.title}
Stok Tersedia

Stok Tidak Tersedia
Tersedia di ${resources.length} lokasi Cabang - Lihat Semua
Tidak ada data cabang

Kode Produk : RM35LM33MW Brand : Schneider Electric Nama Produk : LIQUID LEVEL CONTROL RELAY RM35L 24-240V AC/DC SCHNEIDER ELECTRIC Keterangan : KONTROL LEVEL - RM35LM33MW

This Harmony RM35-LM relay allows monitoring of level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Specification

Response value sensitivity adjustable	TRUE
Type of electric connection	Screw connection
Physical measurement principle	Other
Number of inputs for electrodes	3
Height	90 Millimetre
Width	35 Millimetre
Cascadable	FALSE
Depth	72 Millimetre
Number of contacts as normally open contact	0
Number of contacts as change-over contact	2
Number of contacts as normally closed contact	0
With detachable clamps	FALSE
Max. permitted operate delay time	5 Second
Min. adjustable operate delay time	0.1 Second
Max. permitted off-delay time	5 Second
Min. adjustable off-delay time	0.1 Second
