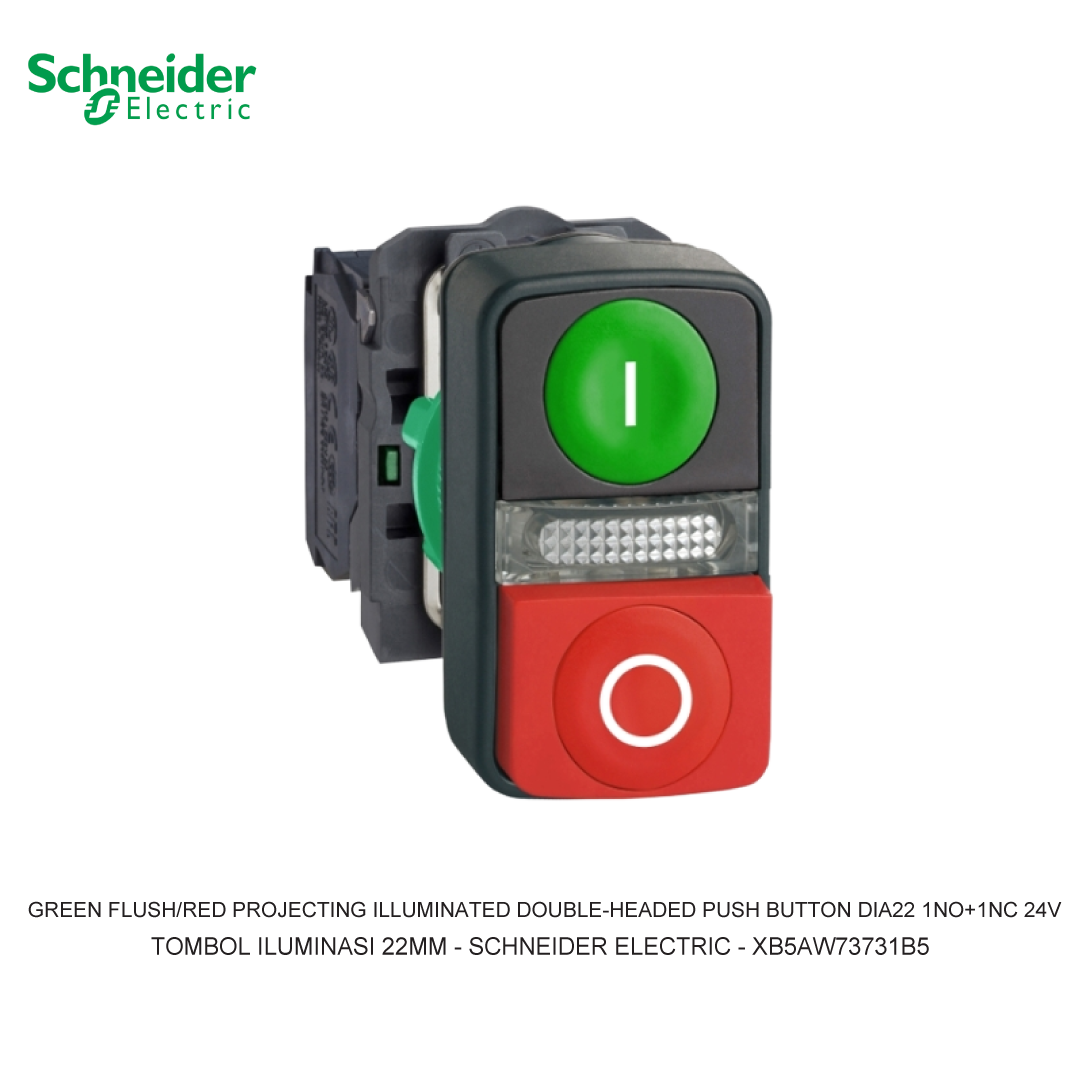

GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 24V

Untuk unduh datasheet produk XB5AW73731B5 green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 24V silakan klik di sini!

Karakteristik Teknikal:

• Kode Produk : XB5AW73731B5
• Brand : Schneider Electric
• Nama Produk : GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 24V
• Keterangan : XB5 (MODULAR TYPE PLASTIK) SCHNEIDER ELECTRIC - XB5AW73731B5
• Rentang produk : Harmony XB5
• Jenis produk atau komponen : Illuminated double-headed push-button
• Material bezel : Plastik abu-abu tua
• Material collar pemasangan : Zamak
• Tipe kepala : Standard
• Diameter pemasangan : 22 mm
• Bentuk kepala unit persinyalan : Persegi panjang
• Tipe operator : Spring return
• Warna penandaan : Penandaan putih bila tutup berwarna hijau, merah atau hitam; Penandaan hitam bila tutup berwarna putih
• Profil operator : 1 flush - 1 push button yang menonjol - 1 pilot light sentral
• Deskripsi operator : Hijau ''I'' - merah ''O''
• Profil operator : Flush hijau, I (putih); Merah menonjol, O (putih)
• Tipe dan komposisi kontak : 1 NO + 1 NC
• Sumber cahaya : Protected LED
• Warna sumber cahaya : Putih
• Dasar bulb : Integral LED
• Tegangan suplai terukur : 24 V AC/DC
• Tinggi : 50 mm
• Width : 30 mm
• Depth : 59 mm
• Berat bersih Illuminated double-headed push-button Schneider Electric XB5AW73731B5 : 0.066 kg

Push Button Schneider Electric

Push Button adalah saklar tombol tekan yang berfungsi untuk menghubungkan atau memutuskan aliran listrik. Push button bekerja dengan cara tekan unlock, yaitu saat tombol ditekan maka saklar akan bekerja, dan saat tombol dilepas maka saklar akan kembali normal.  Push button sering digunakan dalam berbagai aplikasi, seperti: Memulai dan mengakhiri kerja mesin di industri, Tombol darurat atau sakelar pintu otomatis, Mengaktifkan alarm darurat, Sistem pengontrolan motor-motor induksi, Sistem permainan untuk interaksi pengguna.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja!

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specification

Spring-return	TRUE
Colour front ring	Black
Type of electric connection	Screw connection
Material front ring	Plastic
Supply voltage lamp	24 Volt
Hole diameter	22.5 Millimetre
Switching function latching	FALSE
Type of button	High
Number of contacts as normally open contact	1
Construction type lens	Rectangular
Colour button	Red/green
Number of contacts as change-over contact	0
With front ring	TRUE
Degree of protection (IP)	IP66
Suitable for illumination	TRUE
Number of contacts as normally closed contact	1
Transparent	TRUE
Number of command positions	2
Degree of protection (NEMA)	4X
