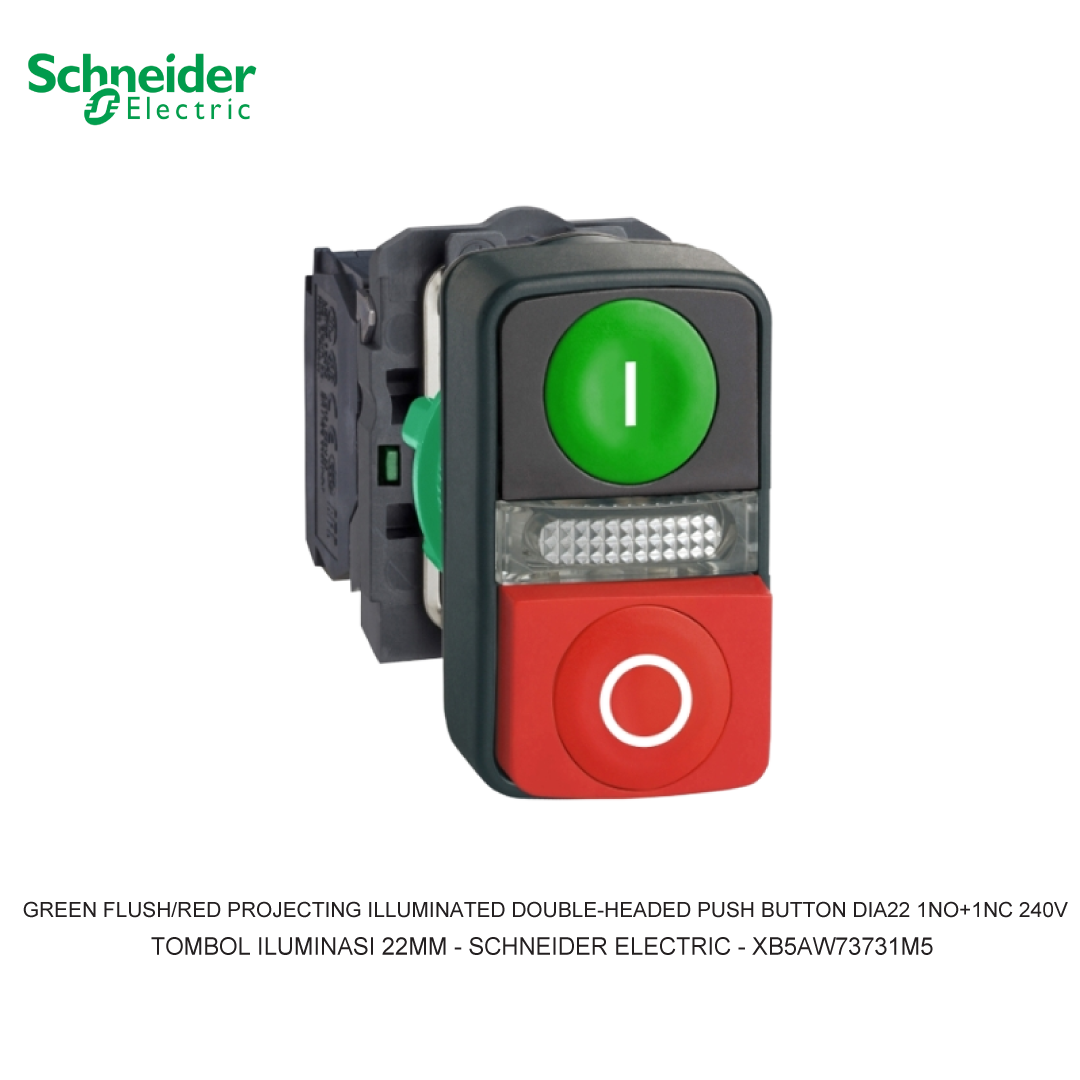

GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 240V

Untuk unduh datasheet produk XB5AW73731M5 green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 240V silakan klik di sini!

Karakteristik Teknikal:

• Kode Produk : XB5AW73731M5
• Brand : Schneider Electric
• Nama Produk : GREEN FLUSH/RED PROJECTING ILLUMINATED DOUBLE-HEADED PUSH BUTTON DIA22 1NO+1NC 240V
• Keterangan : XB5 (MODULAR TYPE PLASTIK) SCHNEIDER ELECTRIC - XB5AW73731M5
• Rentang produk : Harmony XB5
• Jenis produk atau komponen : Illuminated double-headed push-button
• Material bezel : Plastik abu-abu tua
• Material collar pemasangan : Plastik
• Tipe kepala : Standard
• Diameter pemasangan : 22 mm
• Bentuk kepala unit persinyalan : Persegi panjang
• Tipe operator : Spring return
• Profil operator : Flush hijau, I (putih); Merah menonjol, O (putih)
• Warna penandaan : Penandaan putih bila tutup berwarna hijau, merah atau hitam; Penandaan hitam bila tutup berwarna putih
• Tipe dan komposisi kontak : 1 NO + 1 NC
• Sumber cahaya : Protected LED
• Warna suber cahaya : Putih
• Dasar bulb : Integral LED
• Tegangan suplai terukur : 230...240 V AC
• Tinggi : 50 mm
• Lebar : 30 mm
• Kedalaman : 59 mm
• Berat bersih Illuminated double-headed push-button Schneider Electric XB5AW73731M5 : 0.066 kg

Push Button Schneider Electric

Push Button adalah saklar tombol tekan yang berfungsi untuk menghubungkan atau memutuskan aliran listrik. Push button bekerja dengan cara tekan unlock, yaitu saat tombol ditekan maka saklar akan bekerja, dan saat tombol dilepas maka saklar akan kembali normal.  Push button sering digunakan dalam berbagai aplikasi, seperti: Memulai dan mengakhiri kerja mesin di industri, Tombol darurat atau sakelar pintu otomatis, Mengaktifkan alarm darurat, Sistem pengontrolan motor-motor induksi, Sistem permainan untuk interaksi pengguna.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja!

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specification

Spring-return	TRUE
Colour front ring	Black
Type of electric connection	Screw connection
Hole diameter	22.5 Millimetre
Supply voltage lamp	240 Volt
Material front ring	Plastic
Switching function latching	FALSE
Type of button	High
Number of contacts as normally open contact	1
Construction type lens	Rectangular
Number of contacts as change-over contact	0
Colour button	Red/green
With front ring	TRUE
Suitable for illumination	TRUE
Degree of protection (IP)	IP66
Number of contacts as normally closed contact	1
Number of command positions	2
Transparent	TRUE
Degree of protection (NEMA)	4X

Documents

• Declaration of conformity - XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers
• Circularity Profile - 750 Series Hermetically Sealed Relay
• Environmental Disclosure - 750 Series Hermetically Sealed Relay
• Instruction sheet - XB4-XB5 - Mounting - Instruction Sheet
• Catalog - Discover the Harmony XB5 plastic Control and signaling units catalog
