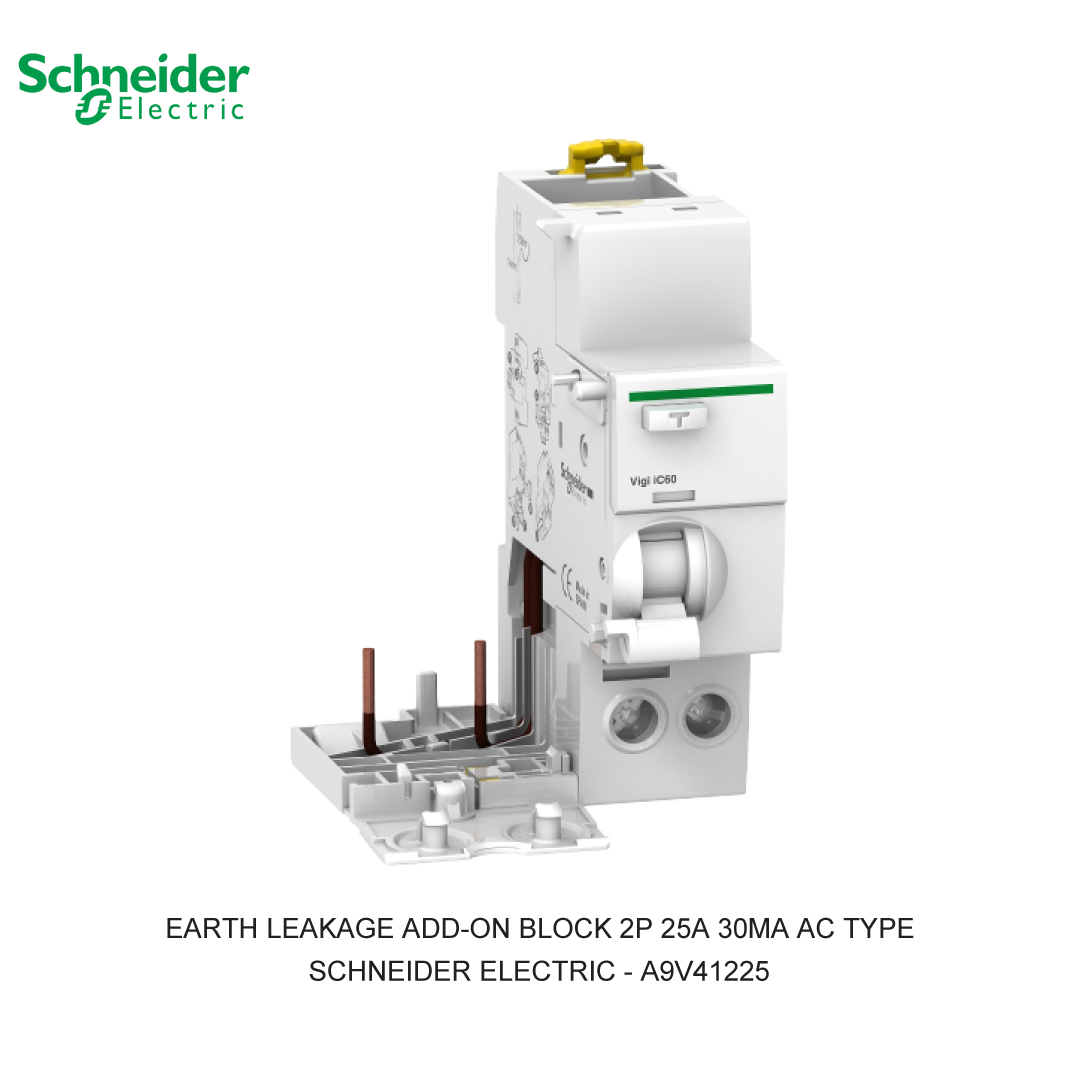

EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE
EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE

EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE

Pilih Jumlah kutub
Pilih Arus pengenal
Kode Produk A9V41225
Nama Produk EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE
Keterangan MODUL VIGI UNTUK MCB IC60 SCHNEIDER ELECTRIC - A9V41225
Brand Schneider Electric
Jumlah Kutub 2P
Arus Pengenal 25A
Tipe Modul Vigi untuk IC60 & C120
Ketersediaan Stok

Download the  A9V41225 EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE product datasheet, by clicking  here!

Fungsi Pemutus Sirkuit Miniatur (MCB):

  • Kode Produk: A9V41225
  • Merek: Schneider Electric
  • Nama Produk: EARTH LEAKAGE ADD-ON BLOCK 2P 25A 30MA AC TYPE
  • Deskripsi:MODUL VIGI UNTUK MCB IC60 SCHNEIDER ELECTRIC - A9V41225
  • Aplikasi perangkat: Distribusi
  • Rentang: Acti9
  • Nama produk: Acti9 Vigi iC60
  • Jenis produk atau komponen: Add-on residual current device
  • Nama singkat perangkat: Vigi iC60
  • Deskripsi kutub: 2P
  • Arus terukur [Masuk]: 25 A
  • Jenis jaringan: AC
  • Sensitivitas kebocoran arde: 30 mA
  • Penundaan waktu proteksi kebocoran arde: Instantaneous
  • Kelas proteksi kebocoran arde: Tipe AC
  • Local signalling: Trip indicator
  • Mode pemasangan: Klip
  • Dukungan pemasangan: Rel DIN
  • Pitch 9 mm: 3
  • Tinggi: 91 mm
  • Lebar: 63 mm
  • Kedalaman: 73,5 mm
  • Berat bersih: 0,165 kg
  • Warna: Putih
  • Garansi: 18 Bulan

MCB for Protection - Acti9 Vigi iC60 Schneider Electric

Memberikan Anda ketenangan pikiran sepenuhnya dalam hal perlindungan sirkuit listrik dan kontinuitas layanan, pemutus sirkuit mini (MCB) sangat ideal jika Anda bekerja di lingkungan dan jaringan yang tercemar. Schneider Electric melayani segmen industri dengan menghadirkan pemutus sirkuit mini (MCB) industri terbaik di kelasnya untuk distribusi listrik tugas berat Anda.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi dan dapat disertai dengan surat keaslian barang. Untuk dapatkan harga MCB terbaik dan informasi lebih lanjut bisa menghubungi tim sales atau marketing kami silakan klik disini. Selamat berbelanja.

This Acti9 Vigi iC60 is a modular add-on residual current devices. It is a 2P, rated current is 63A, operating voltage is 230VAC to 240VAC according to IEC 61009-1. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations. This product is compliant with IEC 61009-1 and EN 61009-1 standard. The Ue rated operational voltage is 230VAC to 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 3. The dimensions are (W) 63mm x (H) 91mm x (D) 73.5mm. The weight is 0.165kg. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature -5°C to +60°C. The storage temperature is -40°C to +85°C.

Specification
Nominal voltage 230…240 Volt
Max. delay time 0 Millisecond
Nominal current 25 Ampere
Rated insulation voltage Ui 500 Volt
Frequency 50/60 Hz
Delay adjustable FALSE
Surge current capacity 0.25 kiloampere
Connectable conductor cross section solid-core 1…25 Square millimetre
Ambient temperature during operating -5…60 Degrees celsius
Rated fault current 0.03 Ampere
Connectable conductor cross section multi-wired 1…16 Square millimetre
Number of poles 2
Rated fault current adjustable FALSE
Pollution degree 3
Rated impulse withstand voltage Uimp 6 Kilovolt
Power loss 1.4 Watt
With interlocking device FALSE
Degree of protection (IP) IP20
Leakage current type AC
Anti-nuisance tripping version FALSE
Documents
Image of product
Image of product

Chat untuk Stock

Rp.973.259,-

40% Rp.1.622.099,-

Add to Cart

Free Ongkir Jabodetabek Menggunakan Kurir Toko Listrikkita
