DISCRETE I/O EXTENSION MODULE 10IO 24VDC FOR ZELIO LOGIC

Name: DISCRETE I/O EXTENSION MODULE 10IO 24VDC FOR ZELIO LOGIC
Brand: SCHNEIDER ELECTRIC
Price: 952643.74 IDR
Availability: InStock

Pilih Tegangan coil

100-240V

24VAC

24VDC

Pilih I/o

Kode Produk

SR3XT101BD

Nama Produk

DISCRETE I/O EXTENSION MODULE 10IO 24VDC FOR ZELIO LOGIC

Keterangan

SMART RELAY SR3 MODUL EXTENSION I/O SCHNEIDER ELECTRIC - SR3XT101BD

Brand

Schneider Electric

Tegangan Coil

24VDC

Tipe

Smart Relay SR2 & SR3

Ketersediaan Stok

${item.title}
Stok Tersedia

Stok Tidak Tersedia
Tersedia di ${resources.length} lokasi Cabang - Lihat Semua
Tidak ada data cabang

Kode Produk : SR3XT101BD Brand : Schneider Electric Nama Produk : DISCRETE I/O EXTENSION MODULE 10IO 24VDC FOR ZELIO LOGIC Keterangan : SMART RELAY SR3 MODUL EXTENSION I/O SCHNEIDER ELECTRIC - SR3XT101BD

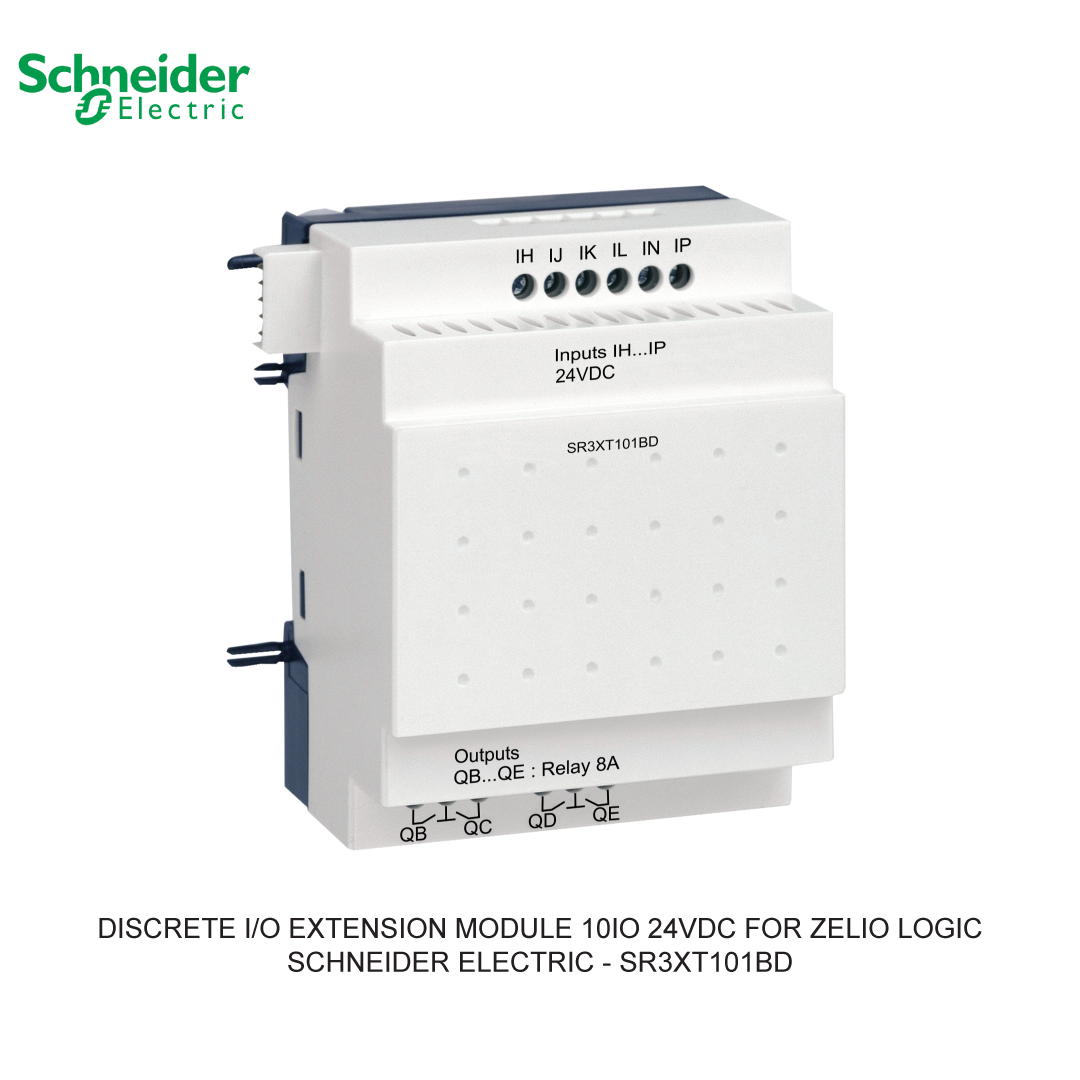

This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 10 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.

Specification

Expandable	FALSE
Number of interfaces PROFINET	0
Supporting protocol for SERCOS	FALSE
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
SIL according to IEC 61508	None
With optical interface	FALSE
Number of HW-interfaces wireless	0
Performance level according to EN ISO 13849-1	None
Basic device	TRUE
Certified for UL hazardous location division 2	FALSE
Radio standard GPRS	FALSE
With relay output	TRUE
Height	90 Millimetre
Supporting protocol for INTERBUS-Safety	FALSE
Certified for UL hazardous location class I	FALSE
Certified for UL hazardous location class III	FALSE
Certified for UL hazardous location division 1	FALSE
Certified for UL hazardous location class II	FALSE
Width	72 Millimetre
Supporting protocol for EtherCAT	FALSE
Redundancy	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Explosion safety category for dust	None
Radio standard GSM	FALSE
Radio standard UMTS	FALSE
Depth	59.5 Millimetre
Explosion safety category for gas	None
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Expansion device	TRUE
Certified for UL hazardous location group C (ethylene)	FALSE
Certified for UL hazardous location group A (acetylene)	FALSE
Certified for UL hazardous location group B (hydrogen)	FALSE
Certified for UL hazardous location group F (carbonaceous dusts)	FALSE
Certified for UL hazardous location group G (non-conductive dusts)	FALSE
Certified for UL hazardous location group D (propane)	FALSE
Certified for UL hazardous location group E (metal dusts)	FALSE
With display	FALSE
Supporting protocol for SafetyBUS p	FALSE
Voltage type (supply voltage)	DC
With time switch clock	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for ASI	FALSE
Radio standard Bluetooth	FALSE
Appendant operation agent (Ex ia)	FALSE
Radio standard WLAN 802.11	FALSE
Supporting protocol for PROFIBUS	FALSE
Front built-in possible	TRUE
Supporting protocol for TCP/IP	FALSE
Supporting protocol for KNX	FALSE
Degree of protection (IP)	IP20
Appendant operation agent (Ex ib)	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
IO link master	FALSE
Supporting protocol for DeviceNet	FALSE
Rail mounting possible	TRUE
Number of digital outputs	4
Switching current	8 Ampere
Suitable for safety functions	FALSE
Supporting protocol for Modbus	FALSE
Number of digital inputs	6
Supporting protocol for Data-Highway	FALSE
Supply voltage DC	24 Volt
Number of analogue outputs	0
Number of analogue inputs	0
Rack-assembly possible	FALSE
Power consumption	1.1 Watt
Supporting protocol for LON	FALSE
Supporting protocol for other bus systems	FALSE
Supporting protocol for SUCONET	FALSE
Number of HW-interfaces RS-422	0
Wall mounting/direct mounting	TRUE
Number of HW-interfaces RS-485	0
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
