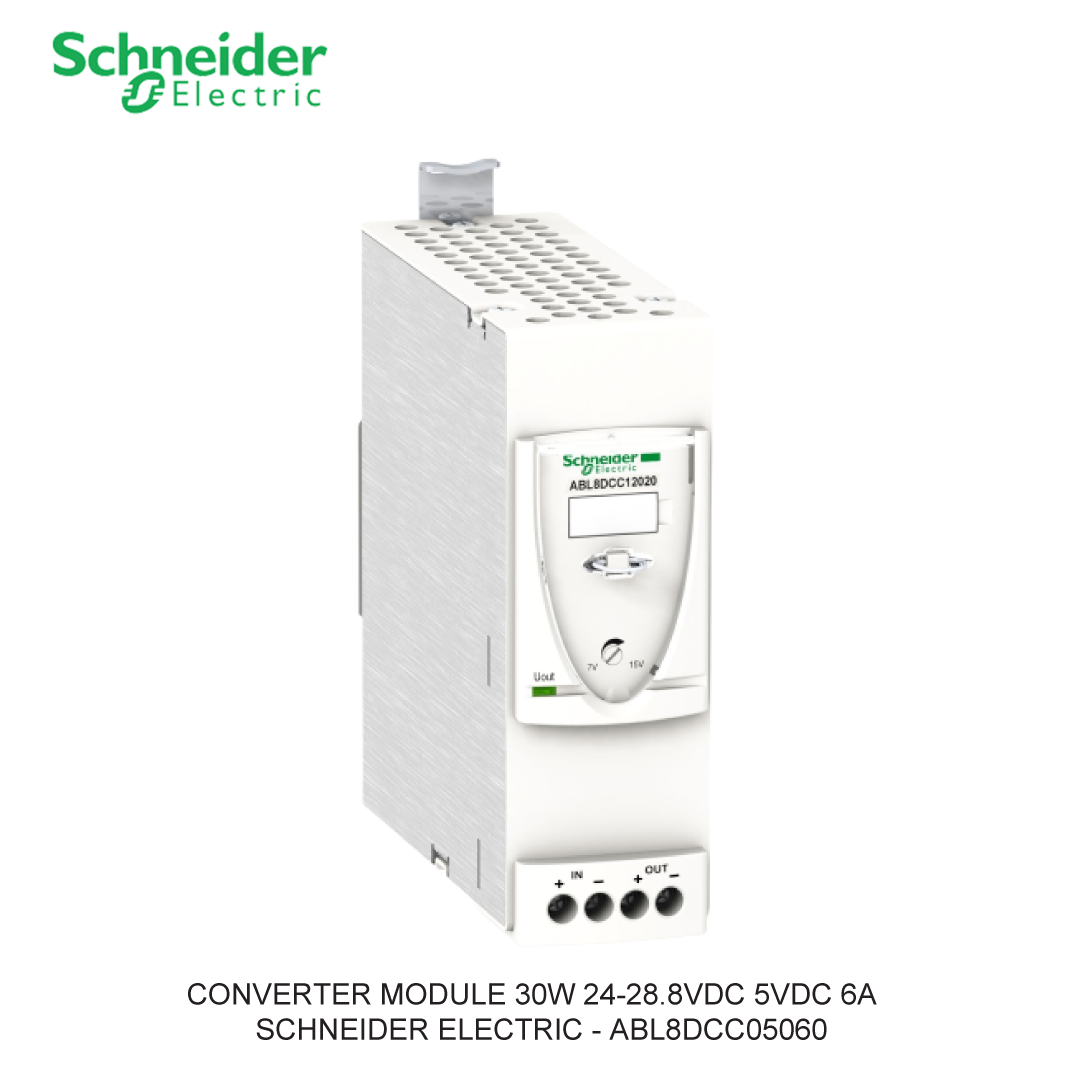

CONVERTER MODULE 30W 24-28.8VDC 5VDC 6A FOR REGULATED SMPS

Name: CONVERTER MODULE 30W 24-28.8VDC 5VDC 6A FOR REGULATED SMPS
Brand: SCHNEIDER ELECTRIC
Price: 1713686.93 IDR
Availability: InStock

Kode Produk

ABL8DCC05060

Nama Produk

Keterangan

CONVERTER ABL8 UNIVERSAL RANGE SCHNEIDER ELECTRIC - ABL8DCC05060

Brand

Schneider Electric

Type

Converter ABL8 Universal Range

Ketersediaan Stok

${item.title}
Stok Tersedia

Stok Tidak Tersedia
Tersedia di ${resources.length} lokasi Cabang - Lihat Semua
Tidak ada data cabang

Download the ABL8DCC05060 CONVERTER MODULE 30W 24-28.8VDC 5VDC 6A FOR REGULATED SMPS SCHNEIDER ELECTRIC product datasheet, by clicking here!

Technical Characteristic:

Product Code : ABL8DCC05060
Brand : Schneider Electric
Product Name : CONVERTER MODULE 30W 24-28.8VDC 5VDC 6A FOR REGULATED SMPS
Description : CONVERTER ABL8 UNIVERSAL RANGE SCHNEIDER ELECTRIC - ABL8DCC05060
Range of product : Phaseo Universal
Product or component type : Converter module
Rated power in W : 30 W
Input voltage : 24...28.8 V DC
Output voltage : 5 V DC
Power supply output current : 6 A
Input voltage limits : 22...30 V
Efficiency : 80 %
Power dissipation in W : 7 W
Input protection type : Against reverse polarity
Output voltage limits : 5...6.5 V
Line and load regulation : 1...3 %
Residual ripple : <= 100 mV
Local signalling : 1 LED (green) for output voltage (> 4 V)
Product weight : 0.3 kg
Warranty : 18 months

Schneider Electric Power supplies for industrial use, rail mounting

Modicon switch mode power supply offer is designed to provide the DC voltage necessary for the automation system equipment control circuits. Modicon industrial power supplies are regulated switch mode power supplies, available in 3 types: ABLM Modular, ABLS Optimised, ABLU3 and ABL8RP/WP Universal.

You can shop safely at ListrikKita.com because all the items we sell are guaranteed 100% original, officially guaranteed, and can be accompanied by a letter of authenticity of the goods. For more information or to make a large purchase, please contact our sales or marketing team by clicking here. Happy shopping!

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 0.25A at 5V DC and a rated power output of 30W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specification

Direct mounting possible	FALSE
Type of electric connection	Screw connection
Voltage type (supply voltage)	AC/DC
Stabilized	TRUE
SIL according to IEC 61508	None
Modular version	TRUE
Short-circuit-proof	TRUE
Performance level according to EN ISO 13849-1	None
Height	143 Millimetre
Nominal value output current 1	6 Ampere
Power output	30 Watt
Degree of protection (IP)	IP20
Rated supply voltage DC	24…28.8 Volt
Nominal value output voltage 1	5 Volt
Max. output current 1	6 Ampere
Output voltage stabilized	TRUE
Width	44 Millimetre
Rail mounting possible	TRUE
Wall mounting possible	FALSE
Suitable for safety functions	TRUE
Depth	140 Millimetre
1st secondary output voltage	5…6.5 Volt
Secondary voltage adjustable	TRUE
