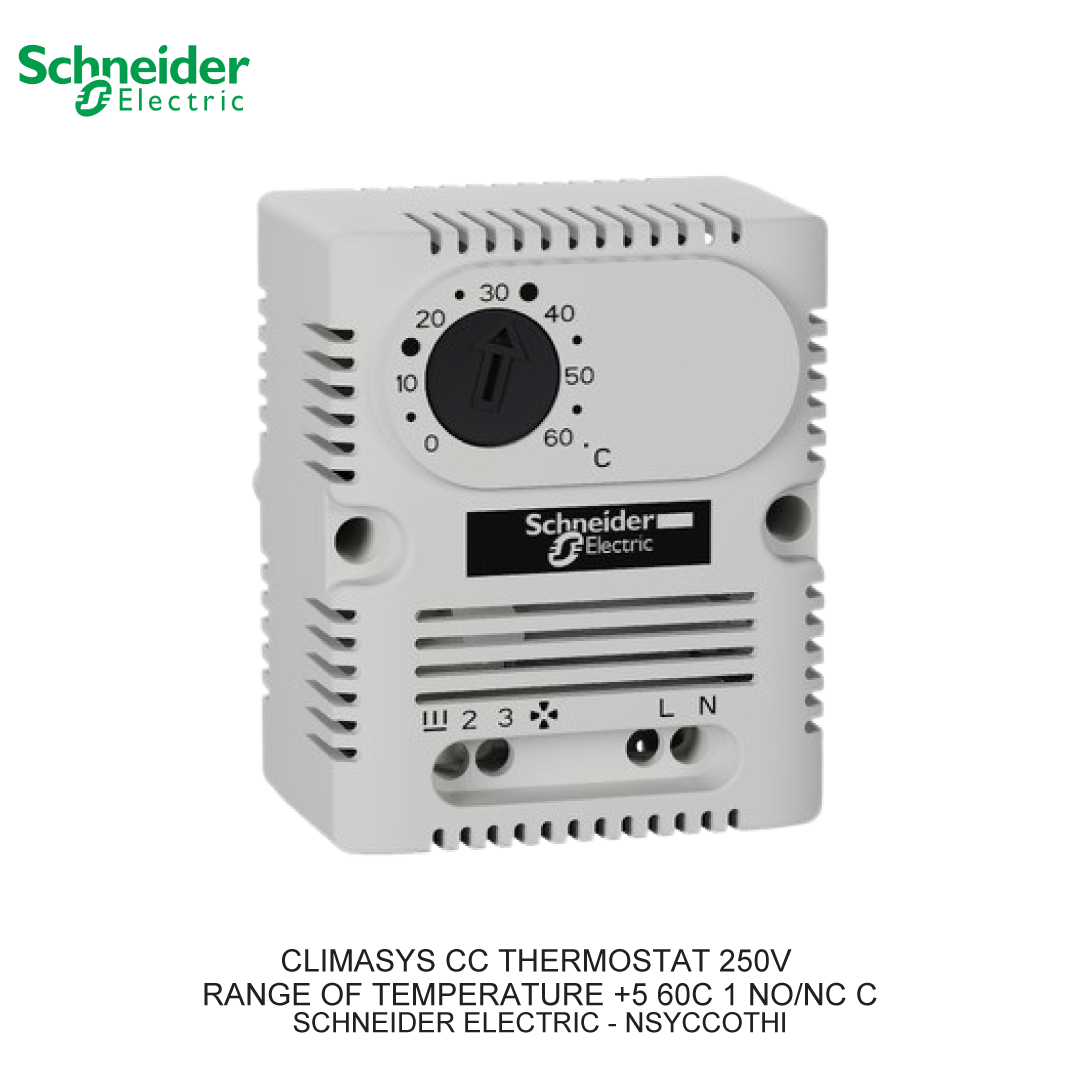

Spesifikasi NSYCCOTHIClimaSys CC - thermostat 250V - range of temperature +5…60°C - 1 NO/NC - °C
Untuk unduh datasheet produk, silakan klik disini!
Untuk unduh Catalog, silakang klik disini!
Untuk unduh Instruction Sheet, silakang klik disini!
Main :
range : ClimaSys
product name : ClimaSys CC
product or component type : Thermostat
temperature setting range : 5…60 °C
information displayed : Temperature in °C
Complementary :
input voltage : 250 V
sensor type : Bimetal
contacts type and composition : 1 NO/NC
contact resistance : 10 mOhm
service life in cycles : 100000 cycles
maximum switching capacity : 4 A 250 V AC inductive pf: 0.6
: 30 W DC
: 10 A 250 V AC inductive
electrical connection : 4 terminals, clamping capacity: 2.5 mm²
mounting mode : Clipped
height : 68 mm external:
width : 56 mm external:
depth : 44 mm external:
net weight : 100 g
mounting location : Cross rails
: On mounting plate
: 35 mm DIN rail
: Spacial upright
ambient air temperature for operation : -20…80 °C
IP degree of protection : IP20
hysteresis : 7 %
number of outputs : 1 heating function
: 1 ventilation function
material : PC
colour : Light grey
flame retardance : Self-extinguishing conforming to UL94 (material V0)
product certifications : UL
Packing Units :
Package 1 Weight : 0.080 kg
Package 1 Height : 70.000 mm
Package 1 width : 55.000 mm
Package 1 Length : 50.000 mm
Offer Sustainability :
REACh Regulation : REACh Declaration
REACh free of SVHC : Yes
EU RoHS Directive : Compliant
: EU RoHS Declaration
Mercury free : Yes
RoHS exemption information : Yes
China RoHS Regulation : China RoHS declaration
: Product out of China RoHS scope. Substance declaration for your information
Contractual warranty :
Warranty : 12 months
Specification
| With digital indication |
FALSE |
| Rated voltage AC 50 Hz |
200…240 Volt |
| Rated voltage AC 60 Hz |
200…240 Volt |
| Temperature setting range |
0…60 Degrees celsius |
| Model |
Thermostat |
| Rated current In |
10 Ampere |
| Mounting method |
Other |
| Type of switch function |
Normally closed contact and normally open contact |
