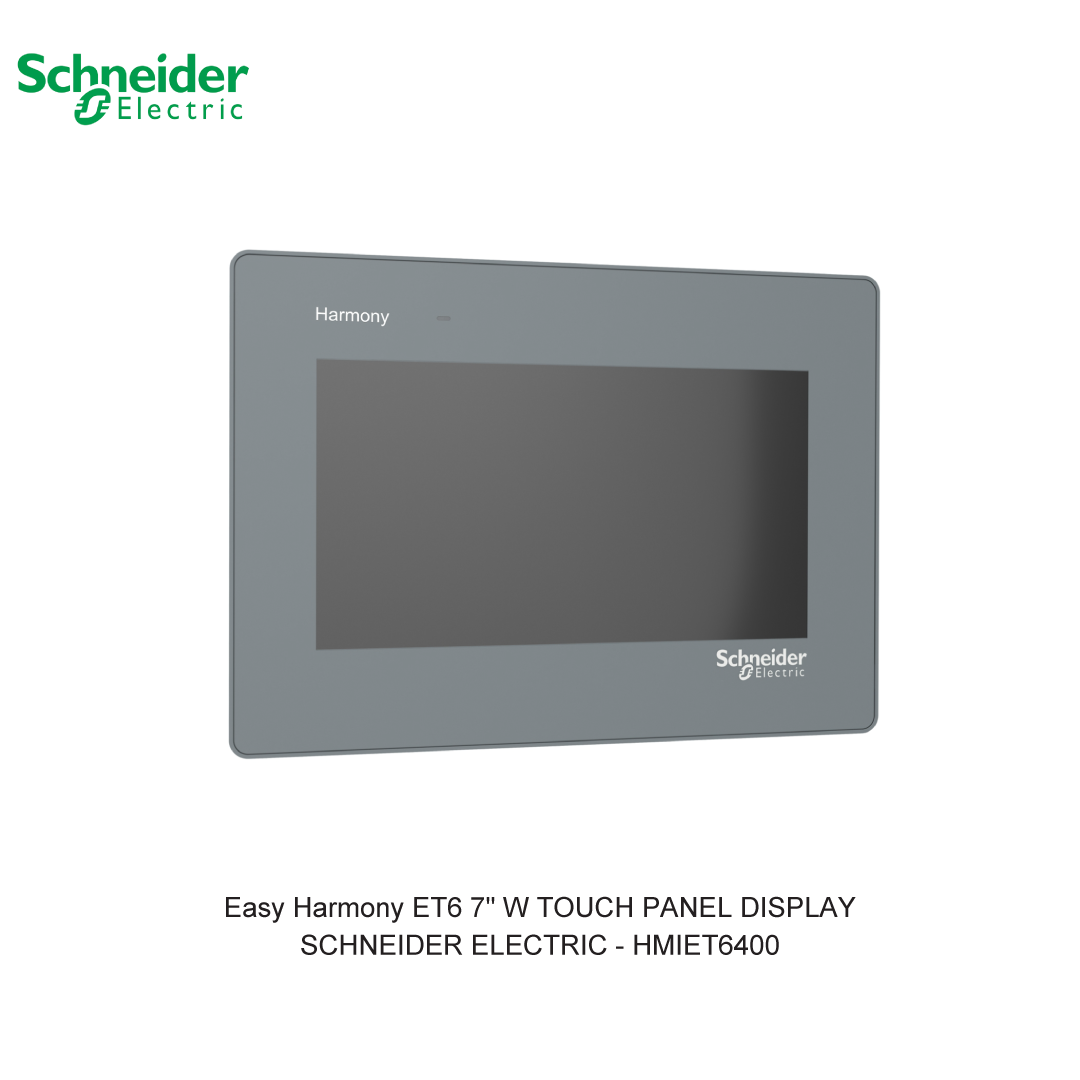

7" W TOUCH PANEL DISPLAY, 800 x 480 pixels, 16M COLORS, 2COM, 1Ethernet, USB HOST&DEVICE, 19.2-28.8VDC

Name: 7" W TOUCH PANEL DISPLAY, 800 x 480 pixels, 16M COLORS, 2COM, 1Ethernet, USB HOST&DEVICE, 19.2-28.8VDC
Brand: SCHNEIDER ELECTRIC
Price: 4913950.28 IDR
Availability: InStock

Pilih Tipe

Easy ET6 ETH

Pilih Ukuran layar

10 inch wide

12 inch wide

15.6 inch wide

7 inch wide

Kode Produk

HMIET6400

Nama Produk

7" W TOUCH PANEL DISPLAY, 800 x 480 pixels, 16M COLORS, 2COM, 1Ethernet, USB HOST&DEVICE, 19.2-28.8VDC

Keterangan

Easy Harmony ET6 7" W TOUCH PANEL DISPLAY - HMIET6400

Brand

Schneider Electric

Tipe

Easy Harmony ET6

Ketersediaan Stok

${item.title}
Stok Tersedia

Stok Tidak Tersedia
Tersedia di ${resources.length} lokasi Cabang - Lihat Semua
Tidak ada data cabang

Download the HMIET6400 7" W TOUCH PANEL DISPLAY, 800 x 480 pixels, 16M COLORS, 2COM, 1Ethernet, USB HOST&DEVICE, 19.2-28.8VDC SCHNEIDER ELECTRIC product datasheet, by clicking here!

Fungsi Easy Harmony ET6 :

Kode Produk : HMIET6400
Merek : Schneider Electric
Nama Produk :7" W TOUCH PANEL DISPLAY, 800 x 480 pixels, 16M COLORS, 2COM, 1Ethernet, USB HOST&DEVICE, 19.2-28.8VDC
Deskripsi : Easy Harmony ET6 7" W TOUCH PANEL DISPLAY - HMIET6400
Rentang Produk: Easy Harmony ET6
Jenis produk atau komponen: Layar panel sentuh
Paket perangkat lunak: Vijeo Designer Basic
Nama prosesor: ARM Cortex-A8
Ukuran layar: 7 inci
Jenis layar: LCD TFT berwarna
Warna layar: 16 juta warna
Resolusi layar: 800 x 480 piksel WVGA
Panel sentuh: Resistif analog sentuh tunggal
Kecerahan: 16 level
Arus masuk: 30 A
Konsumsi daya (W): 9 W
Jumlah halaman: 200 halaman aplikasi
Merek produk: Schneider Electric
Mode pemasangan: Dengan 4 sekrup, pemasangan pada panel setebal 1,6-5 mm
Dimensi potongan: Dimensi potongan panel 190 x 135 mm
Tinggi: 151 mm
Lebar: 206 mm
Kedalaman: 45 mm
Berat bersih: 0,61 kg
Garansi: 18 bulan

Easy Harmony ET6 - Schneider Electric

Rangkaian panel sentuh mendasar untuk Machine Builder Panel layar sentuh mendasar Easy Harmony ET6 adalah produk tingkat awal yang dirancang untuk memenuhi persyaratan tertentu dari ekonomi baru. Panel ini dirancang untuk berkomunikasi dengan sistem mesin sederhana untuk interaksi manusia mesin.

Anda dapat berbelanja dengan aman di ListrikKita.com karena semua barang yang kami jual dijamin 100% asli, bergaransi resmi, dan dapat disertai dengan surat keaslian barang. Untuk informasi lebih lanjut atau ingin melakukan pembelian dalam jumlah besar bisa menghubungi tim sales atau marketing kami, dengan klik di sini. Selamat berbelanja

HMIET6400 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 7 inch wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 205.5mm (width) x 150.5mm (height) x 45mm (depth) and weighs 0.60Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.

Specification

With message indication	FALSE
Number of interfaces PROFINET	0
Number of HW-interfaces parallel	0
Supporting protocol for SERCOS	FALSE
Number of function buttons, programmable	0
Number of HW-interfaces other	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	2
Useful project memory/user memory	1000000 kiloByte (1000 Byte)
With numeric keyboard	FALSE
Number of grey-scales/blue-scales of display	16
Number of HW-interfaces wireless	0
With alpha numeric keyboard	FALSE
Certified for UL hazardous location division 2	FALSE
Number of buttons with LED	0
Radio standard GPRS	FALSE
With message system (incl. buffer and confirmation)	FALSE
Process value representation (output) possible	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Type of display	TFT
Certified for UL hazardous location class I	FALSE
Certified for UL hazardous location class III	FALSE
Certified for UL hazardous location division 1	FALSE
Certified for UL hazardous location class II	FALSE
Supporting protocol for EtherCAT	FALSE
Number of password levels	0
With printer output	FALSE
Process default value (input) possible	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
With recipes	FALSE
Degree of protection (IP), front side	IP65
Radio standard GSM	FALSE
Radio standard UMTS	FALSE
Number of online languages	0
Additional software components, loadable	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Touch technology	Resistive touch
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
With SW interfaces	FALSE
Operating temperature	0…50 Degrees celsius
Screen diagonal	7 Inch
Number of system buttons	0
Certified for UL hazardous location group C (ethylene)	FALSE
Certified for UL hazardous location group A (acetylene)	FALSE
Certified for UL hazardous location group B (hydrogen)	FALSE
Certified for UL hazardous location group F (carbonaceous dusts)	FALSE
Certified for UL hazardous location group G (non-conductive dusts)	FALSE
Certified for UL hazardous location group D (propane)	FALSE
Certified for UL hazardous location group E (metal dusts)	FALSE
Built-in depth	45 Millimetre
Supporting protocol for SafetyBUS p	FALSE
Voltage type (supply voltage)	DC
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for ASI	FALSE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
Supporting protocol for PROFIBUS	FALSE
Supply voltage AC 50 Hz	0…24 Volt
Supporting protocol for TCP/IP	FALSE
Supporting protocol for KNX	FALSE
Number of pixels, horizontal	800
Colour display	TRUE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Number of colours of the display	16000000
IO link master	FALSE
Rail mounting possible	FALSE
Supporting protocol for DeviceNet	FALSE
Suitable for safety functions	TRUE
Supporting protocol for Modbus	FALSE
Width of the front	206 Millimetre
Supporting protocol for Data-Highway	FALSE
Height of the front	151 Millimetre
Supply voltage DC	0…24 Volt
Supporting protocol for LON	FALSE
Supporting protocol for other bus systems	FALSE
Supporting protocol for SUCONET	FALSE
Number of HW-interfaces RS-422	1
Wall mounting/direct mounting	TRUE
Number of pixels, vertical	80
Number of HW-interfaces RS-485	1
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces RS-232	1
